SKU: LCJT40-XL-N-INA

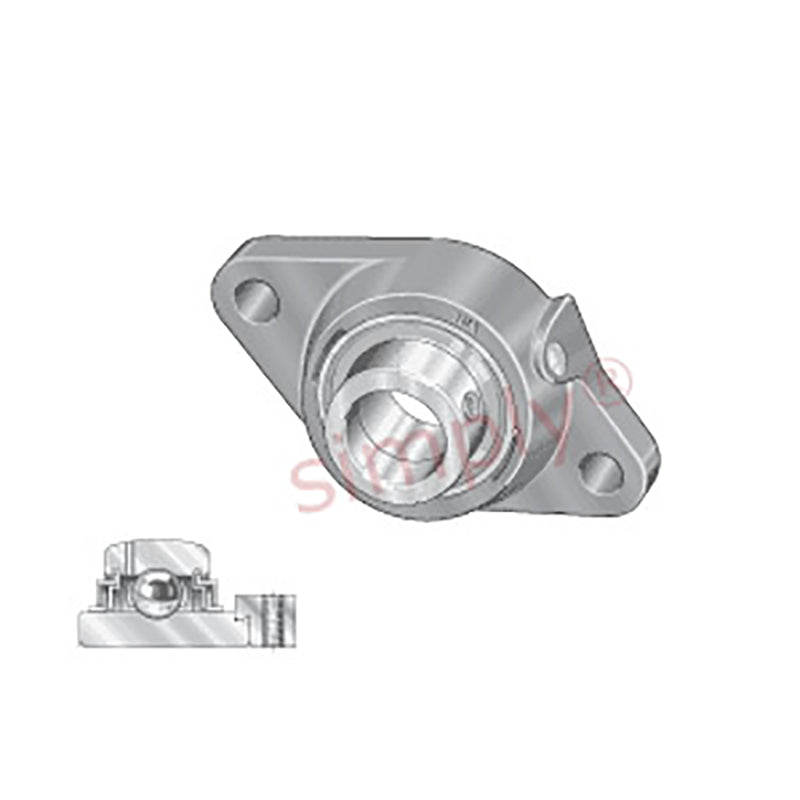

INA LCJT40XLN Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert for Wide Temperatures 40mm Bore
INA LCJT40XLN Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert for Wide Temperatures 40mm Bore
Regular price
CHF 86.00
ex VAT
Regular price
Sale price
CHF 86.00
ex VAT
In stock
Price Break
4+
CHF 68.03
9+
CHF 64.21
19+
CHF 63.45
29+
CHF 62.68
39+
CHF 61.92
49+
CHF 61.15
59+
CHF 57.33
69+
CHF 56.57
79+
CHF 55.80
89+
CHF 55.04
99+
CHF 53.51
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. This housing unit has a wide operating temperature range of -40 deg C to +180 deg C making it suitable for use in arduous conditions where rapid temperature changes are expected. Benefits: Re-lubricatable, eccentric collar, wide temperature range, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Temperature Range:
- Wide Temp
- Style:
- LCJT
- Bolt Hole Centres:
- 143.5mm
Technical
Technical
| d | 40mm |
|---|---|
| H | 172mm |
| U | 59.1mm |
| A | 34.5mm |
| A1 | 13mm |
| A2 | 24mm |
| B1 | 56.5mm |
| d3 max | 58mm |
| J | 143.5mm |
| L | 105mm |
| N | 14mm |
| Q | M6mm |
| V | 105mm |
| Mass | 1.66 kg |
| Basic dynamic load rating Cr | 34500 N |
| Basic static load rating Cor | 19800 N |
| Designation of housing | CJT08 |
| Designation of bearing | GE40-XL-KLL-B |
| Bearing end cap, closed design (to be ordered separately) | KASK08 |
