SKU: LCJT50-XL-N-INA

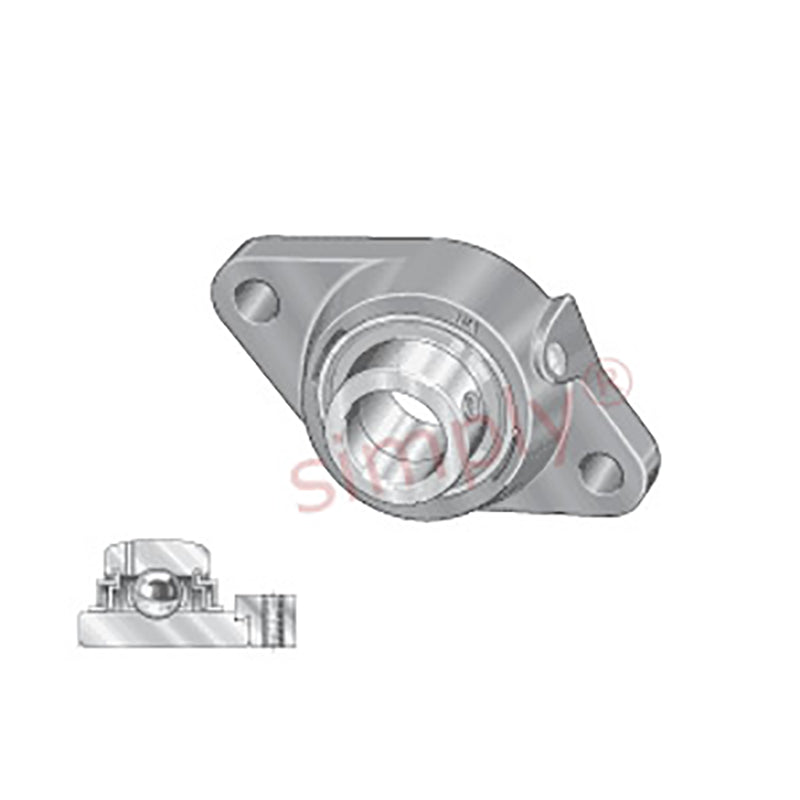

INA LCJT50XLN Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert for Wide Temperatures 50mm Bore
INA LCJT50XLN Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert for Wide Temperatures 50mm Bore
Regular price
CHF 114.00
ex VAT
Regular price
Sale price
CHF 114.00
ex VAT
In stock
Price Break
4+
CHF 90.24
9+
CHF 85.17
19+
CHF 84.15
29+
CHF 83.14
39+
CHF 82.13
49+
CHF 81.11
59+
CHF 76.04
69+
CHF 75.03
79+
CHF 74.01
89+
CHF 73.00
99+
CHF 70.97
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. This housing unit has a wide operating temperature range of -40 deg C to +180 deg C making it suitable for use in arduous conditions where rapid temperature changes are expected. Benefits: Re-lubricatable, eccentric collar, wide temperature range, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Temperature Range:
- Wide Temp
- Style:
- LCJT
- Bolt Hole Centres:
- 157mm
Technical

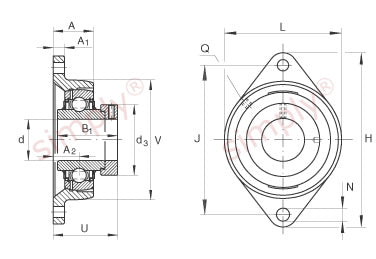

Technical
| d | 50mm |
|---|---|
| H | 190mm |
| U | 66.2mm |
| A | 39mm |
| A1 | 13mm |
| A2 | 28mm |
| B1 | 62.8mm |
| d3 max | 69mm |
| J | 157mm |
| L | 116mm |
| N | 18mm |
| Q | M6mm |
| V | 116mm |
| Mass | 2.21 kg |
| Basic dynamic load rating Cr | 37500 N |
| Basic static load rating Cor | 23200 N |
| Designation of housing | CJT10 |
| Designation of bearing | GE50-XL-KLL-B |
| Bearing end cap, closed design (to be ordered separately) | KASK10 |
