SKU: LFR.5206-202RS.MB

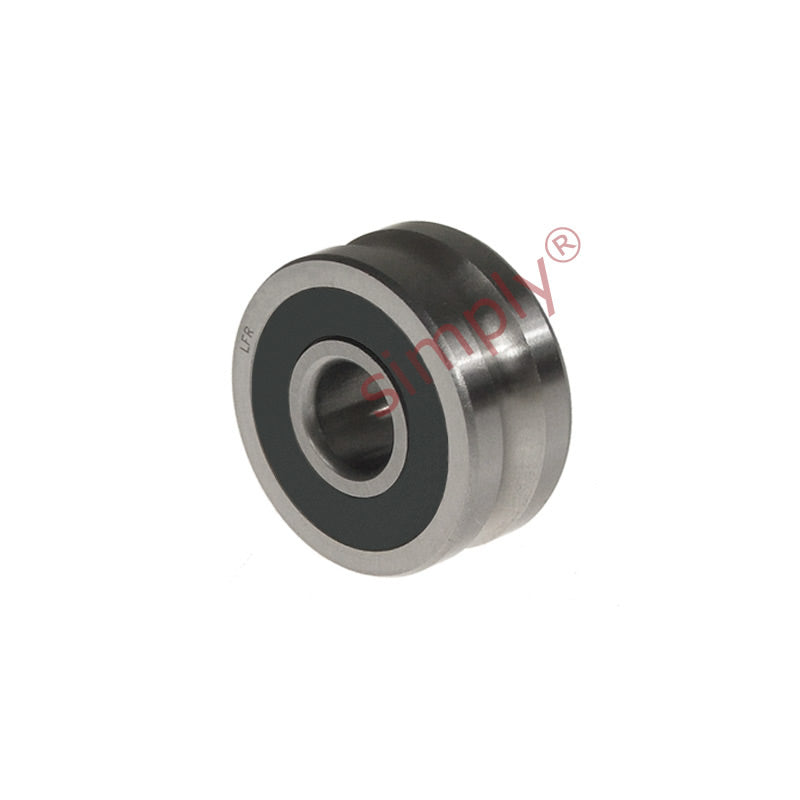

Major Brand LFR5206-202RS Yoke Type Track Roller with U Groove 25x72x23.8mm
Major Brand LFR5206-202RS Yoke Type Track Roller with U Groove 25x72x23.8mm
Regular price
CHF 61.00
ex VAT
Regular price
Sale price
CHF 61.00
ex VAT
Equivalent to: LFR5206-20NPP
In stock
Price Break
10+
CHF 48.04
19+
CHF 45.34
29+
CHF 44.80
39+
CHF 44.26
49+
CHF 43.72
74+
CHF 43.18
99+
CHF 40.48
199+
CHF 39.94
249+
CHF 39.40
499+
CHF 38.86
999+
CHF 37.78
Share this product
Description
Description
|
Rubber Sealed U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with rubber seals inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The seal can be easily removed for applications that only require 1 seal. |
Equivalent: LFR5206-20NPP
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 72mm
- Width:
- 23.8mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 25mm |
|---|---|
| D max | 72mm |
| B | 25.8mm |
| AT | 41mm |
| C | 23.8mm |
| ds | 20mm |
| r min | 0.6mm |
| Dynamic load | 29500 N |
| Static load | 16600 N |
| Speed in grease | 20700 rpm |
| Speed in oil | 33200 rpm |
