SKU: LFR.5206-25.2Z.EU

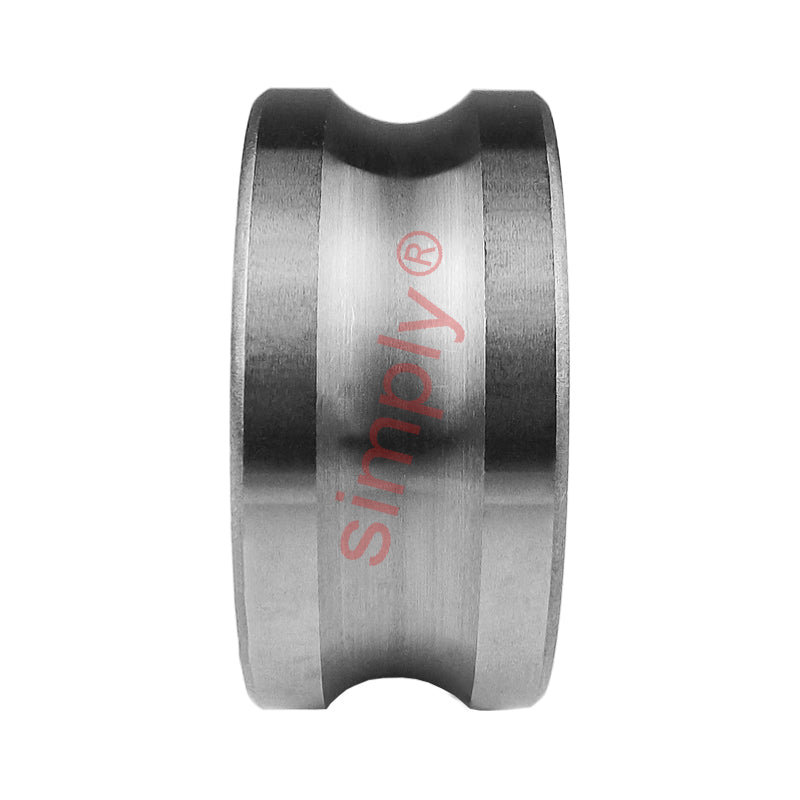

Budget LFR5206-252Z Yoke Type Track Roller with U Groove 25x72x23.8mm
Budget LFR5206-252Z Yoke Type Track Roller with U Groove 25x72x23.8mm
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
Equivalent to: LFR5206-25KDD
In stock
Price Break
10+
CHF 7.75
19+
CHF 7.32
29+
CHF 7.23
39+
CHF 7.14
49+
CHF 7.06
74+
CHF 6.97
99+
CHF 6.53
199+
CHF 6.45
249+
CHF 6.36
499+
CHF 6.27
999+
CHF 6.10
Share this product
Description
Description
|
Metal Shielded U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with metal shields inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The shields can be removed for applications that only require 1 shield. |
Equivalent: LFR5206-25KDD
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 72mm
- Width:
- 25.8mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| d | 25mm |
|---|---|
| D max | 72mm |
| B | 25.8mm |
| AT | 43.5mm |
| C | 23.8mm |
| ds | 25mm |
| r min | 0.6mm |
| Dynamic load | 29200 N |
| Static load | 16400 N |
| Speed in grease | 23100 rpm |
| Speed in oil | 32800 rpm |
