SKU: LFR.5206-252Z.INA

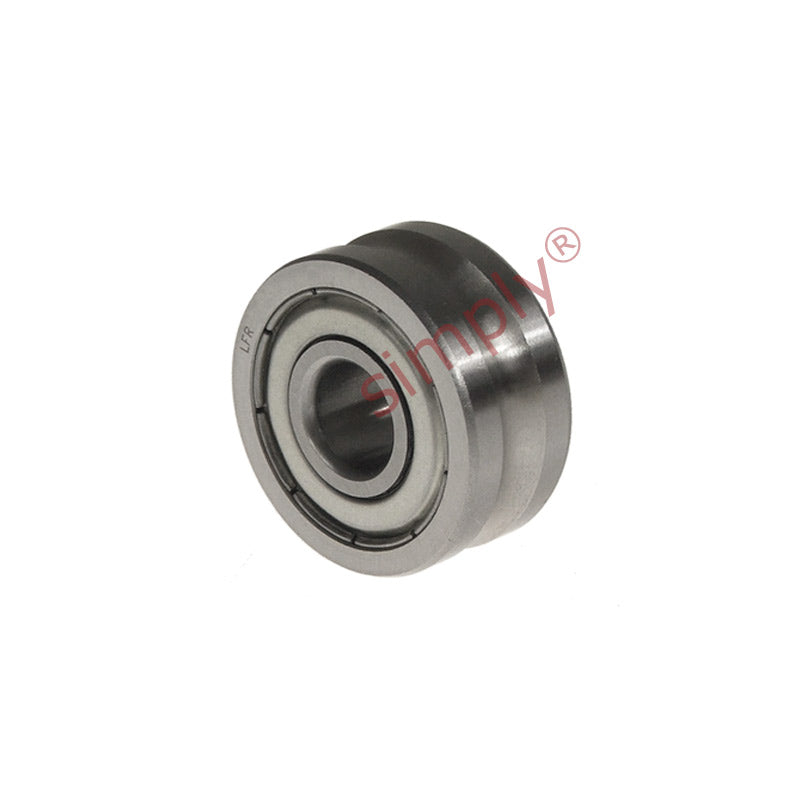

INA LFR5206-252Z Yoke Type Track Roller with U Groove 25x72x23.8mm
INA LFR5206-252Z Yoke Type Track Roller with U Groove 25x72x23.8mm
Regular price
CHF 54.07
ex VAT
Regular price
Sale price
CHF 54.07
ex VAT
In stock
Price Break
10+
CHF 48.12
19+
CHF 45.42
29+
CHF 44.88
39+
CHF 44.34
49+
CHF 43.80
74+
CHF 43.26
99+
CHF 40.55
199+
CHF 40.01
249+
CHF 39.47
499+
CHF 38.93
999+
CHF 37.85
Couldn't load pickup availability
Description
Description
|
Metal Shielded U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with metal shields inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The shields can be removed for applications that only require 1 shield. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 72mm
- Width:
- 23.8mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| d | 25mm |
|---|---|
| D max | 72mm |
| B | 25.8mm |
| AT | 43.5mm |
| C | 23.8mm |
| ds | 25mm |
| r min | 0.6mm |
| Dynamic load | 29200 N |
| Static load | 16400 N |
| Speed in grease | 23100 rpm |
| Speed in oil | 32800 rpm |
