SKU: LFR.5308-502Z.MB

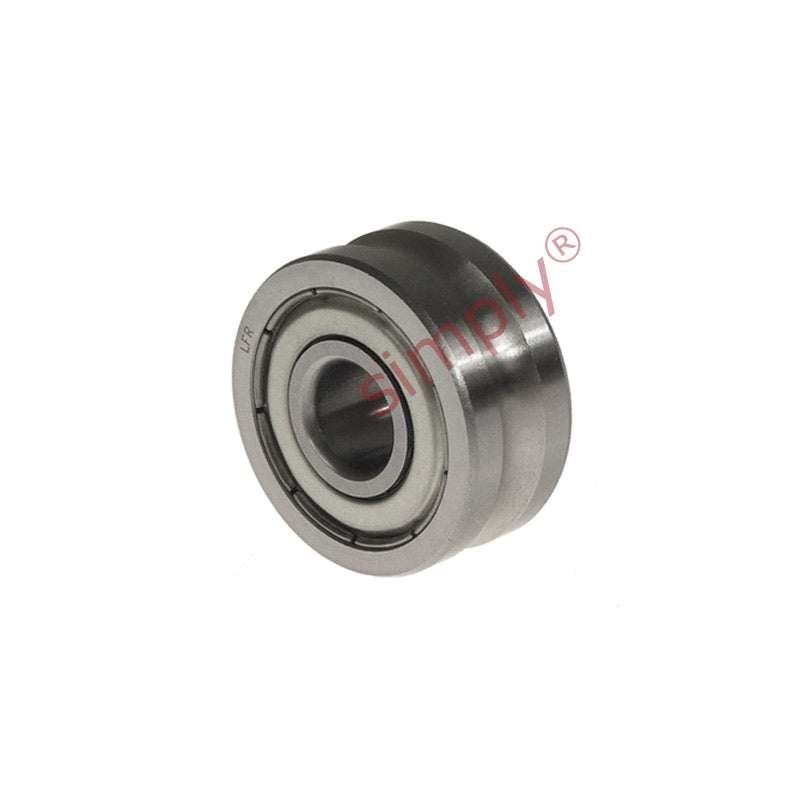

Major Brand LFR5308-502Z Yoke Type Track Roller with U Groove 40x110x44mm
Major Brand LFR5308-502Z Yoke Type Track Roller with U Groove 40x110x44mm
Regular price
CHF 140.00
ex VAT
Regular price
Sale price
CHF 140.00
ex VAT
Equivalent to: LFR5308-50KDD
In stock
Price Break
10+
CHF 111.52
19+
CHF 105.26
29+
CHF 104.00
39+
CHF 102.75
49+
CHF 101.50
74+
CHF 100.25
99+
CHF 93.98
199+
CHF 92.73
249+
CHF 91.47
499+
CHF 90.22
999+
CHF 87.71
Share this product
Description
Description
|
Metal Shielded U Groove Track Roller Bearings: These U groove profile double row ball bearings are manufactured with metal shields inserted into the outer raceway to help prevent ingress of foreign matter into the bearing and serve to retain the pre-filled grease in the bearing. The U profile ground into the outer raceway is designed to allow the bearing to run along rails or other guides. The shields can be removed for applications that only require 1 shield. |
Equivalent: LFR5308-50KDD
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 110mm
- Width:
- 44mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| d | 40mm |
|---|---|
| D max | 110mm |
| B | 46mm |
| AT | 72.5mm |
| C | 44mm |
| ds | 50mm |
| r min | 1.1mm |
| Dynamic load | 53000 N |
| Static load | 39500 N |
| Speed in grease | 69000 rpm |
| Speed in oil | 79000 rpm |
