SKU: LFTC1.3/8EC-RHP

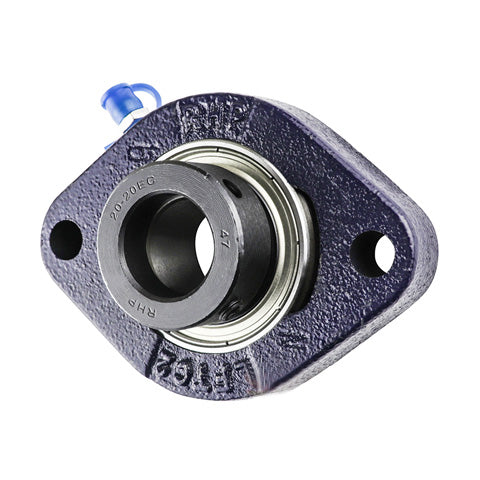

RHP LFTC1-3/8EC Two Bolt Oval Cast Iron Flange Housing Bearing 1-3/8 inch Bore
RHP LFTC1-3/8EC Two Bolt Oval Cast Iron Flange Housing Bearing 1-3/8 inch Bore
Regular price
CHF 66.28
ex VAT
Regular price
Sale price
CHF 66.28
ex VAT
In stock
Price Break
10+
CHF 58.99
19+
CHF 55.68
29+
CHF 55.01
39+
CHF 54.35
49+
CHF 53.69
74+
CHF 53.02
99+
CHF 49.71
199+
CHF 49.05
249+
CHF 48.38
499+
CHF 47.72
999+
CHF 46.40
Couldn't load pickup availability
Description
Description
|
RHP LFTC EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 34.93mm = 1.375 (1-3/8) inch
- Style:
- LFTC
- Bolt Hole Centres:
- 100.01mm = 3.937 (3-15/16) inch
Technical
Technical
| Bore | 1-3/8 inch |
|---|---|
| L | 3.661 inch |
| H | 4.921 inch |
| J | 3.937 inch |
| G | 0.375 inch |
| A | 0.866 inch |
| A2 | 1.643 inch |
| B2 | 1.531 inch |
| s1 | 0.376 inch |
| d2 | 2.188 inch |
| Dynamic load | 25700 N |
| Static load | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1235-1-3/8ECG+insonly">1235-1-3/8ECG Click Here</a> |
| Casting group | 5 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
