SKU: LFTC20-RHP

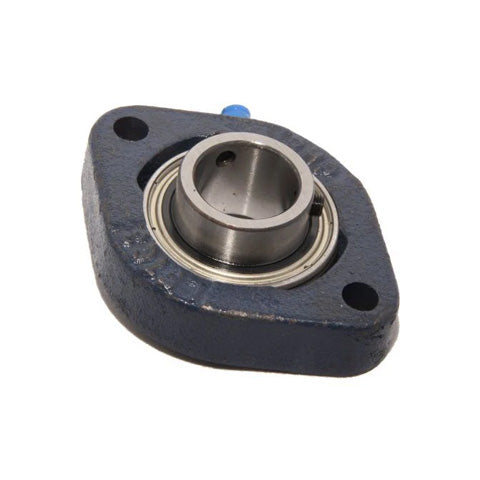

RHP LFTC20 Two Bolt Oval Cast Iron Flange Housing Bearing 20mm Bore
RHP LFTC20 Two Bolt Oval Cast Iron Flange Housing Bearing 20mm Bore
Regular price
CHF 38.26
ex VAT
Regular price
Sale price
CHF 38.26
ex VAT
In stock
Price Break
10+
CHF 34.05
19+
CHF 32.14
29+
CHF 31.76
39+
CHF 31.37
49+
CHF 30.99
74+
CHF 30.61
99+
CHF 28.70
199+
CHF 28.31
249+
CHF 27.93
499+
CHF 27.55
999+
CHF 26.78
Couldn't load pickup availability
Description
Description
|
RHP LFTC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- LFTC
- Bolt Hole Centres:
- 71.5mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 66.5mm |
| H | 90.5mm |
| J | 71.5mm |
| G | 8mm |
| A | 17mm |
| A1 | 27.76mm |
| B | 30.96mm |
| s | 12.75mm |
| d1 | 28.5mm |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-20G+insonly">1020-20G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
