SKU: LFTC20EC-RHP

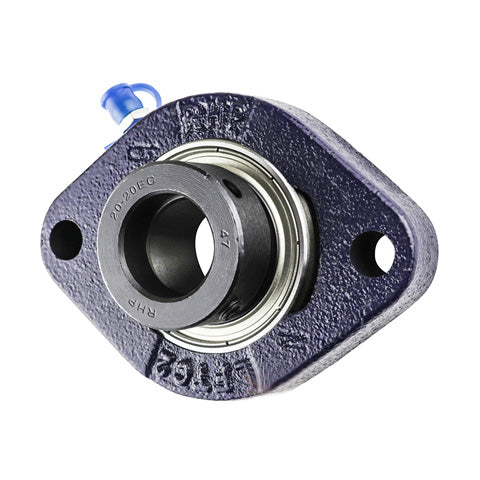

RHP LFTC20EC Two Bolt Oval Cast Iron Flange Housing Bearing 20mm Bore
RHP LFTC20EC Two Bolt Oval Cast Iron Flange Housing Bearing 20mm Bore
Regular price
CHF 39.10
ex VAT
Regular price
Sale price
CHF 39.10
ex VAT
In stock
Price Break
10+
CHF 34.80
19+
CHF 32.84
29+
CHF 32.45
39+
CHF 32.06
49+
CHF 31.67
74+
CHF 31.28
99+
CHF 29.33
199+
CHF 28.93
249+
CHF 28.54
499+
CHF 28.15
999+
CHF 27.37
Couldn't load pickup availability
Description
Description
|
RHP LFTC EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- LFTC
- Bolt Hole Centres:
- 71.5mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 66.5mm |
| H | 90.5mm |
| J | 71.5mm |
| G | 8mm |
| A | 17mm |
| A2 | 32.92mm |
| B2 | 30.92mm |
| s1 | 7.56mm |
| d2 | 33.3mm |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1220-20ECG+insonly">1220-20ECG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
