SKU: LFTC3/4A-RHP

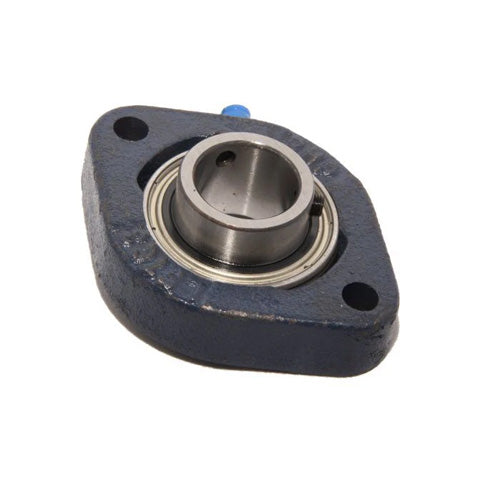

RHP LFTC3/4A Two Bolt Oval Cast Iron Flange Housing Bearing 3/4 inch Bore
RHP LFTC3/4A Two Bolt Oval Cast Iron Flange Housing Bearing 3/4 inch Bore
Regular price
CHF 38.12
ex VAT
Regular price
Sale price
CHF 38.12
ex VAT
In stock
Price Break
10+
CHF 33.93
19+
CHF 32.02
29+
CHF 31.64
39+
CHF 31.26
49+
CHF 30.88
74+
CHF 30.50
99+
CHF 28.59
199+
CHF 28.21
249+
CHF 27.83
499+
CHF 27.45
999+
CHF 26.68
Couldn't load pickup availability
Description
Description
|
RHP LFTC A Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- LFTC
- Bolt Hole Centres:
- 71.501mm = 2.815 inch
Technical
Technical
| Bore | 3/4 inch |
|---|---|
| L | 2.618 inch |
| H | 3.563 inch |
| J | 2.815 inch |
| G | 0.3125 inch |
| A | 0.669 inch |
| A1 | 1.093 inch |
| B1 | 1.015 inch |
| s1 | 0.298 inch |
| d1 | 1.222 inch |
| Dynamic load | 12800 N |
| Static load | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1220-3/4AG+insonly">1220-3/4AG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
