SKU: LFTC7/8-RHP

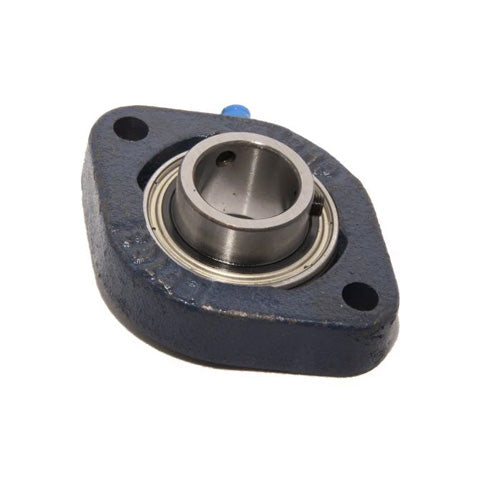

RHP LFTC7/8 Two Bolt Oval Cast Iron Flange Housing Bearing 7/8 inch Bore
RHP LFTC7/8 Two Bolt Oval Cast Iron Flange Housing Bearing 7/8 inch Bore
Regular price
CHF 38.12
ex VAT
Regular price
Sale price
CHF 38.12
ex VAT
In stock
Price Break
10+
CHF 33.93
19+
CHF 32.02
29+
CHF 31.64
39+
CHF 31.26
49+
CHF 30.88
74+
CHF 30.50
99+
CHF 28.59
199+
CHF 28.21
249+
CHF 27.83
499+
CHF 27.45
999+
CHF 26.68
Couldn't load pickup availability
Description
Description
|
RHP LFTC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- LFTC
- Bolt Hole Centres:
- 75.997mm = 2.992 inch
Technical
Technical
| Bore | 7/8 inch |
|---|---|
| L | 2.795 inch |
| H | 3.78 inch |
| J | 2.992 inch |
| G | 0.3125 inch |
| A | 0.689 inch |
| A1 | 1.151 inch |
| B | 1.343 inch |
| s | 0.564 inch |
| d1 | 1.339 inch |
| Dynamic load | 14000 N |
| Static load | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.5 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-7/8G+insonly">1025-7/8G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
