SKU: LJ.1.NR.EU

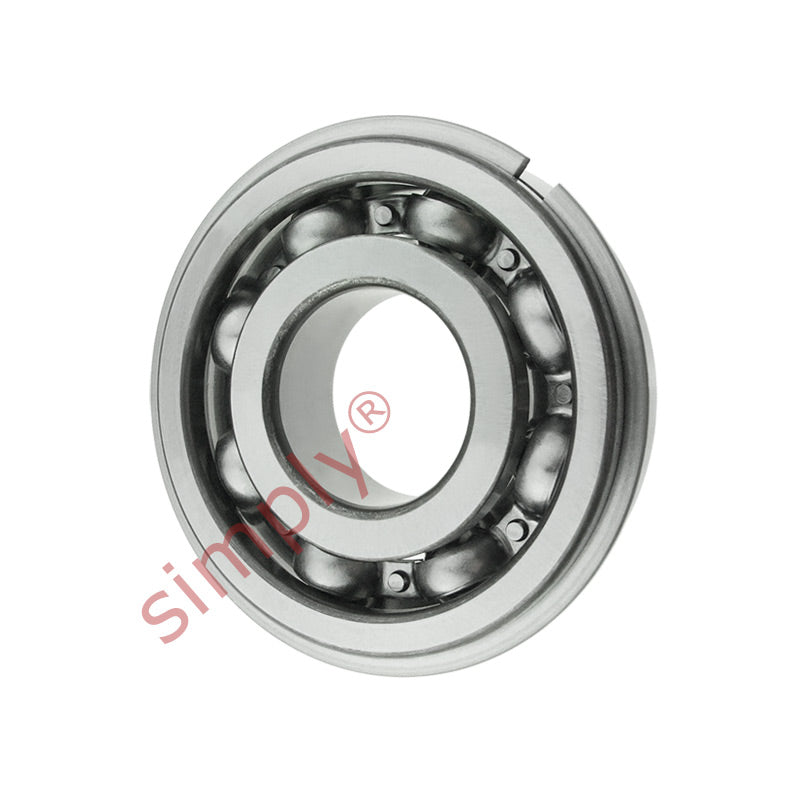

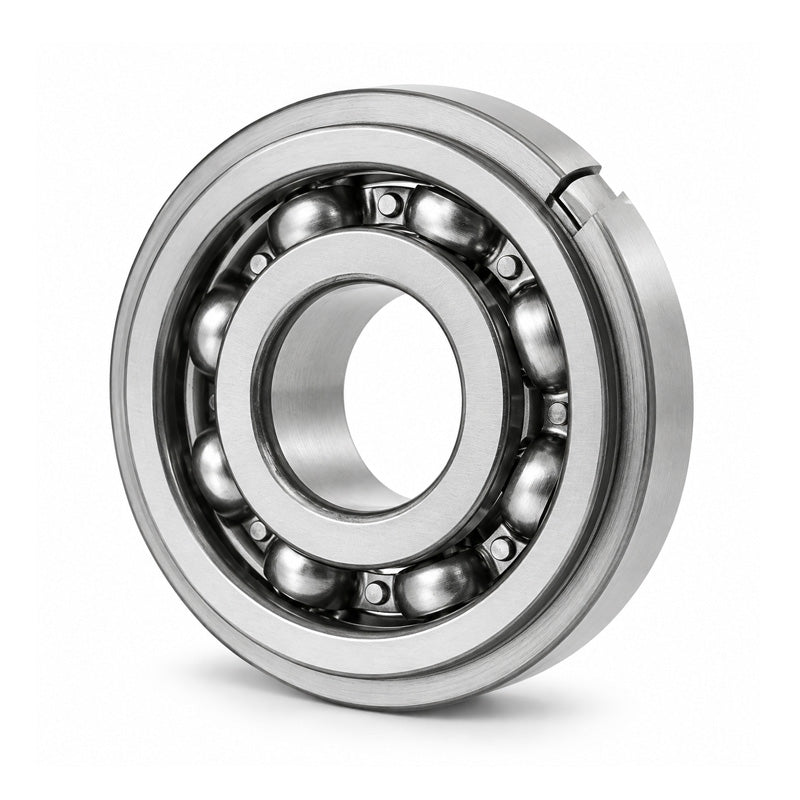

LJ1NR Imperial Open Snap Ring Bearing 1x2-1/4x5/8 inch
LJ1NR Imperial Open Snap Ring Bearing 1x2-1/4x5/8 inch
Regular price
CHF 7.36
ex VAT
Regular price
Sale price
CHF 7.36
ex VAT
Equivalent to: RLS8NR
In stock
Price Break
10+
CHF 6.55
19+
CHF 6.18
29+
CHF 6.11
39+
CHF 6.04
49+
CHF 5.96
74+
CHF 5.89
99+
CHF 5.52
199+
CHF 5.45
249+
CHF 5.37
499+
CHF 5.30
999+
CHF 5.15
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: RLS8NR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Outside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Width:
- 15.88mm = 0.625 (5/8) inch
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| Bore (d) | 1 inch |
|---|---|
| Outside Diameter (D) | 2.25 inch |
| Width (B) | 0.625 inch |
| Dynamic Load Rating | 18600 N |
| Static Load Rating | 9700 N |
| Limiting Speed (Grease) | 12700 rpm |
| Limiting Speed (Oil) | 17000 rpm |
| Weight | 0.169 kg |
