SKU: LL103049/LL103010-TIM

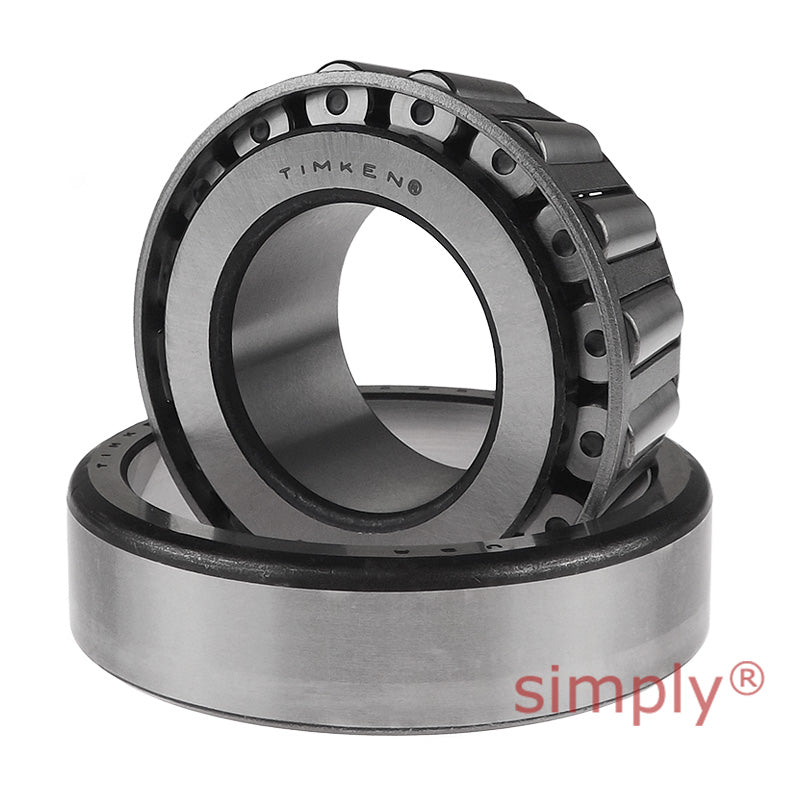

Timken LL103049/LL103010 TS Single-Row Taper Roller Bearing 1.75x2.8125x0.5 inch
Timken LL103049/LL103010 TS Single-Row Taper Roller Bearing 1.75x2.8125x0.5 inch
Regular price
CHF 276.79
ex VAT
Regular price
Sale price
CHF 276.79
ex VAT
In stock
Price Break
10+
CHF 246.34
19+
CHF 232.50
29+
CHF 229.74
39+
CHF 226.97
49+
CHF 224.20
74+
CHF 221.43
99+
CHF 207.59
199+
CHF 204.82
249+
CHF 202.06
499+
CHF 199.29
999+
CHF 193.75
Couldn't load pickup availability
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Outside Diameter:
- 71.44mm = 2.813 (2-13/16) inch
- Width:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| d | 44.45mm = 1.75 inch |
|---|---|
| D | 71.438mm = 2.8125 inch |
| T | 12.7mm = 0.5 inch |
| Dynamic (1) C1 | 33400N |
| Factors (5) e | 0.31 |
| Factors (5) Y | 1.97 |
| Dynamic (2) C90 | 8660N |
| Dynamic (2) Ca90 | 4530N |
| Factors (5) K | 1.91 |
| Static C0 | 43600N |
| Bearing B | 12.7mm = 0.5 inch |
| Bearing C | 9.525mm = 0.375 inch |
| Bearing a(3) | -1.3mm = -0.05 inch |
| Shaft max shaft fillet radius R(4) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 48.5mm = 1.91 inch |
| Shaft backing shoulder diameter db | 51mm = 2.01 inch |
| Housing backing shoulder diameter r(4) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Da | 68mm = 2.68 inch |
| Housing backing shoulder diameter Db | 65mm = 2.56 inch |
| Cage Aa | 0.1mm = 0 inch |
| Cage Ab | 1.5mm = 0.06 inch |
| G1 | 20 |
| G2 | 23.6 |
| Cg | 0.0637 |
