SKU: LM.16.UU.AJ.EU

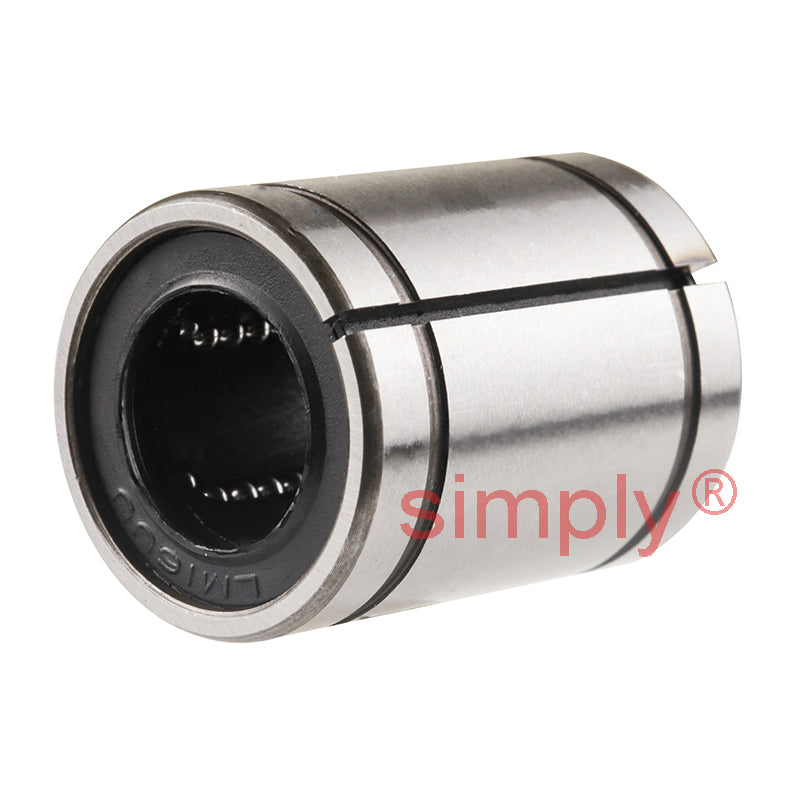

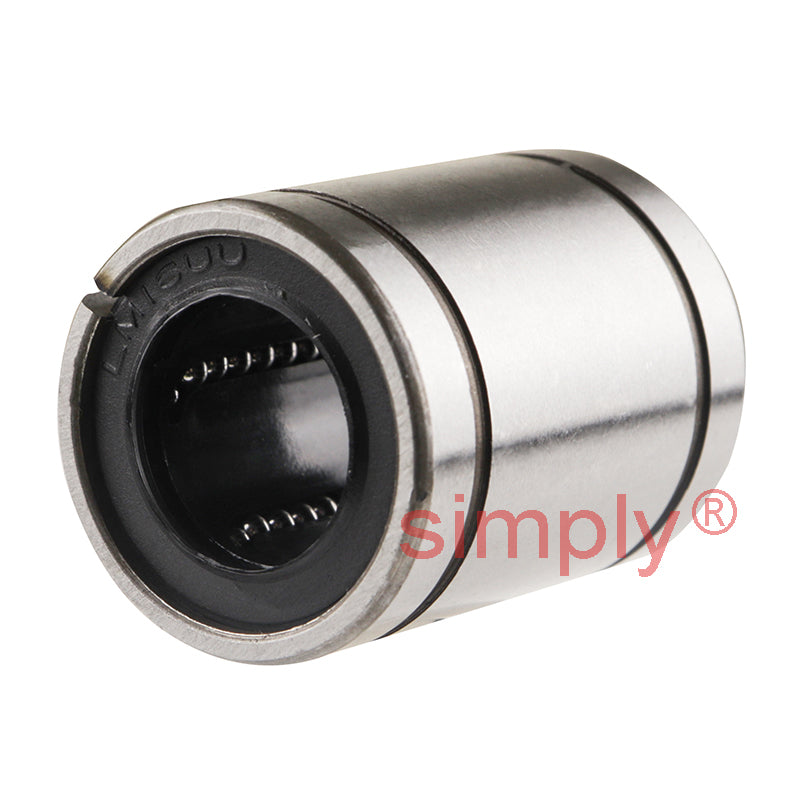

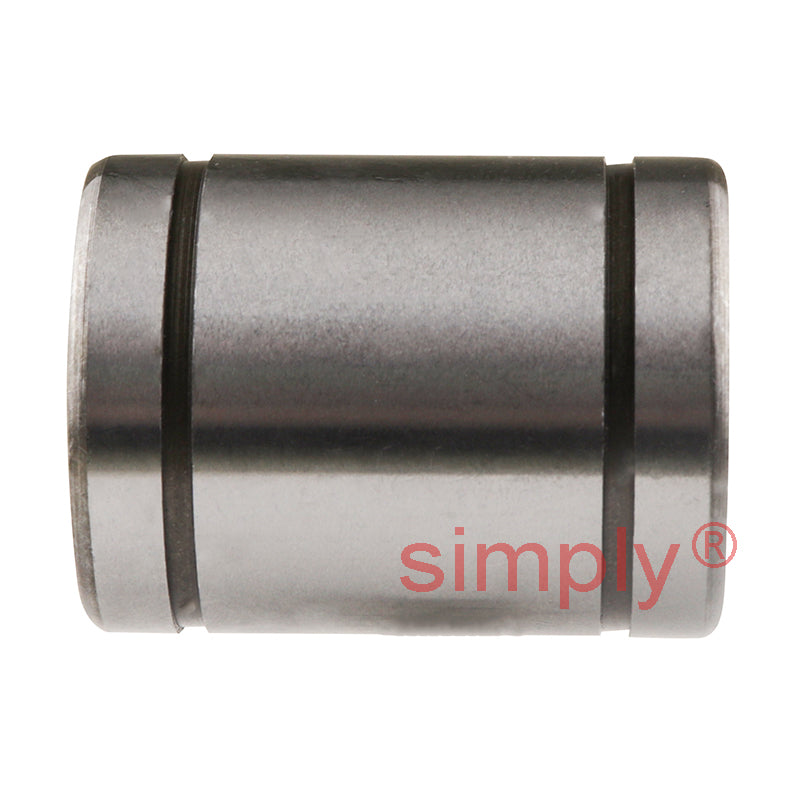

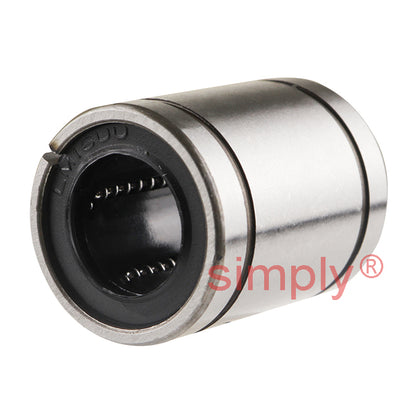

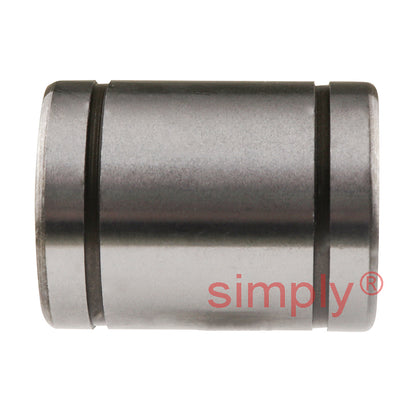

LM16UUAJ Adjustable Linear Ball Bushing with Rubber Seals 16x28x37mm
Equivalent to: SM16GUUAJ LBD16UUAJ LB16NTYDD N16VUUADJ L16ADJUU TB16ADJUU
In stock
Price Break
Share this product
Description
LM-AJ Series Rubber Sealed Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
Equivalent: SM16GUUAJ LBD16UUAJ LB16NTYDD N16VUUADJ L16ADJUU TB16ADJUU
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 28mm
- Length:
- 37mm
Technical
| Inside Diameter dr | 16mm Tol + 0 to - 6µm |
|---|---|
| Outside Diameter D | 28mm Tol + 0 to - 12µm |
| Length L | 37mm Tol + 0 to - 200µm |
| W | 1.6mm |
| D1 | 27mm |
| h | 1.5mm |
| Eccentricity | 8µm |
| Dynamic load C | 49 kgf |
| Static load C<sub>o</sub> | 78 kgf |
| Weight | 69 g |
| B | 26.5mm Tol + 0 to - 200µm |
| Number of ball rows | 5 |
