SKU: LM.30.UU.OP.EU

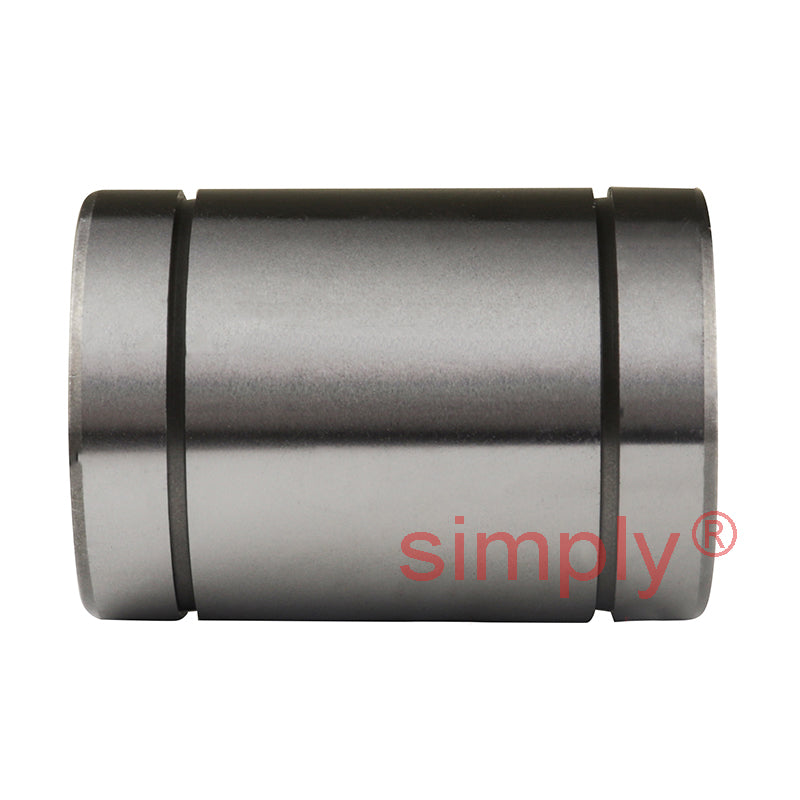

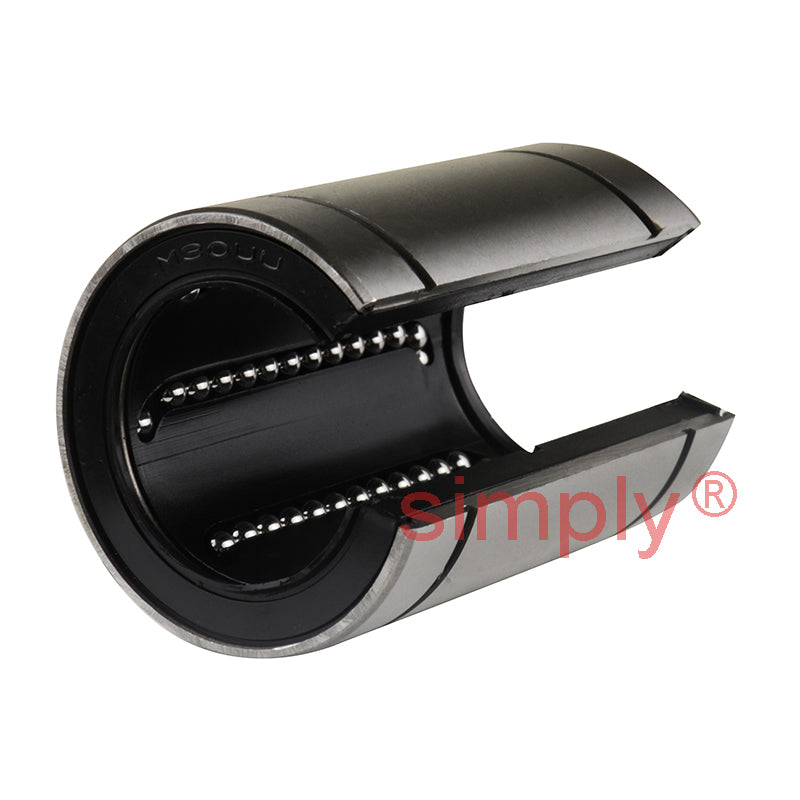

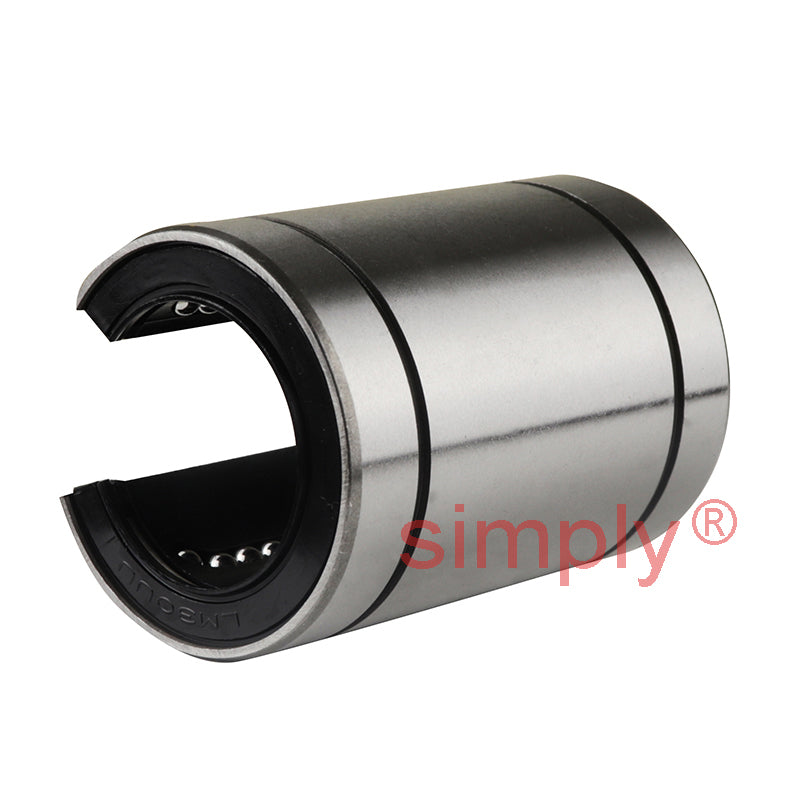

LM30UUOP Open Linear Ball Bushing with Rubber Seals 30x45x64mm
Equivalent to: SM30GUUOP N30VUUOP L30AOPUU TB30OPUU
In stock
Price Break
Couldn't load pickup availability
Description
LM-OP Series Rubber Sealed Open Side Linear Ball Bushings: Manufactured with rubber seals these linear ball bushings are characterised by their smooth movement, high rigidity and low friction, they are easy to maintain or replace and have a good life span in service. They consist of steel outer housings with sets of balls running around their own tracks within the low friction polyamide / steel inner raceways. The UU series has the benefit of rubber seals to prevent the ingress of dust and moisture. |
Equivalent: SM30GUUOP N30VUUOP L30AOPUU TB30OPUU
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 45mm
- Length:
- 64mm
Technical
| Inside Diameter dr | 30mm Tol + 0 to - 7µm |
|---|---|
| Outside Diameter D | 45mm Tol + 0 to - 14µm |
| Length L | 64mm Tol + 0 to - 300µm |
| W | 1.85mm |
| D1 | 43mm |
| h1 | 15mm |
| Angle | 50? degrees |
| Eccentricity | 10µm |
| Dynamic load C | 140 kgf |
| Static load C<sub>o</sub> | 255 kgf |
| Weight | 250 g |
| B | 44.5mm Tol + 0 to - 300µm |
| Number of ball rows | 5 |
