SKU: LMB.24.UU.AJ.EU

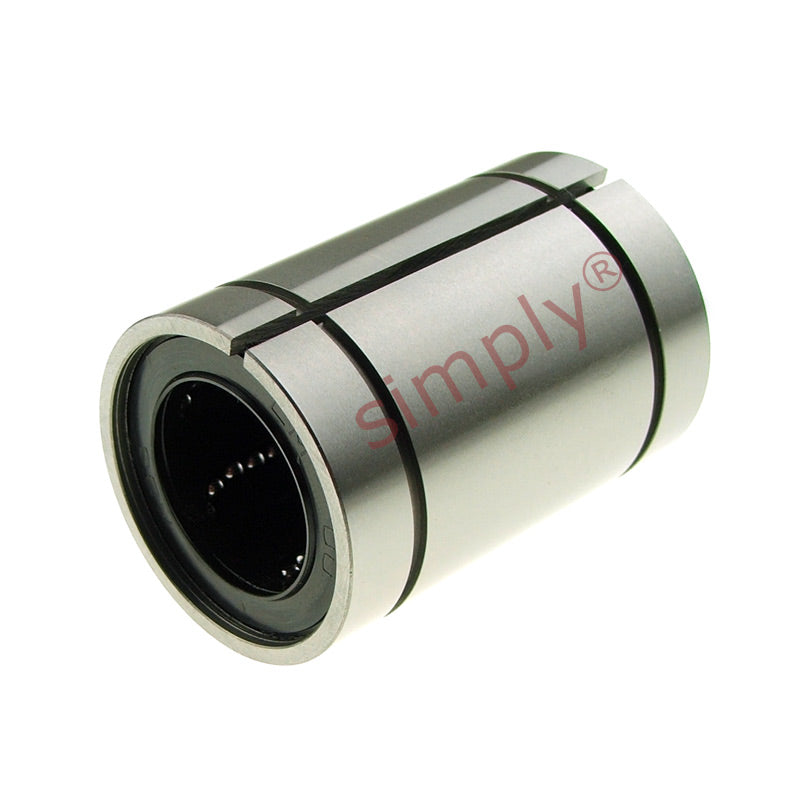

LMB24UUAJ Imperial Adjustable Linear Ball Bushing with Rubber Seals 1.5x2.375x3 inch - Allow 2-3 Days

LMB24UUAJ Imperial Adjustable Linear Ball Bushing with Rubber Seals 1.5x2.375x3 inch - Allow 2-3 Days
Regular price CHF 149.00 ex VAT
Regular price Sale price CHF 149.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 131.57
5+ CHF 126.26
10+ CHF 123.60
15+ CHF 119.61
20+ CHF 116.95
30+ CHF 110.31
40+ CHF 93.03
50+ CHF 0.00
60+ CHF 0.00
75+ CHF 0.00
100+ CHF 0.00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Inside Diameter dr 1.5 inch Tol - 0 to + 8µm
Outside Diameter D 2.375 inch Tol - 0 to + 19µm
Length L 3 inch Tol - 0 to + 300µm
W 0.0859 inch
D1 2.2389 inch
B 2.4118 inch
h 0.012 inch
Eccentricity 12 to 20µm
Dynamic load C 222 kgf
Static load C<sub>o</sub> 410 kgf
Weight 720 g
Number of ball rows 5
Tolerances dr & D Apply to closed type only
