SKU: LR205-2RS-INA

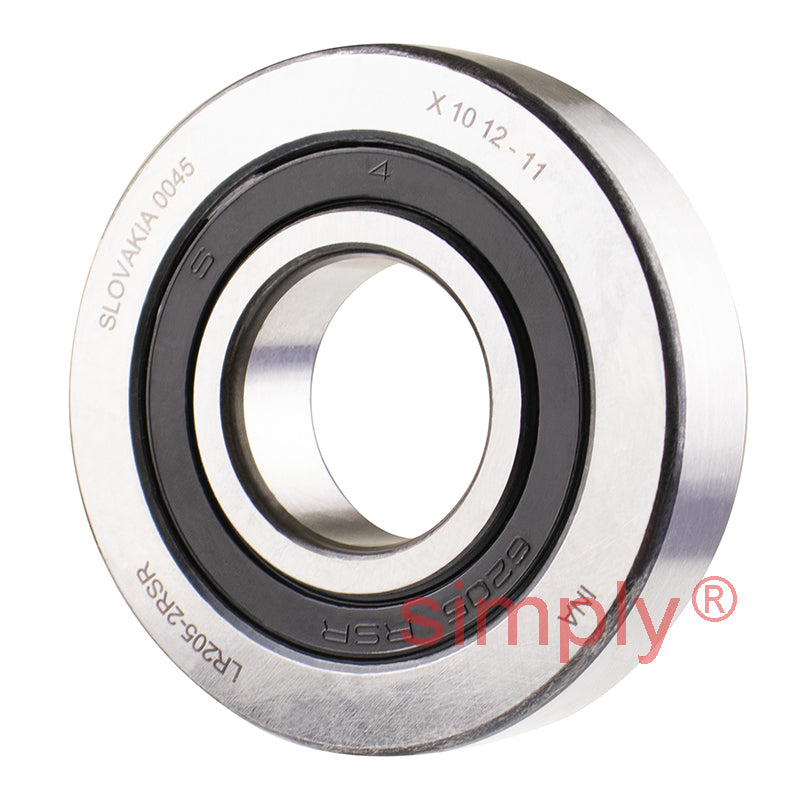

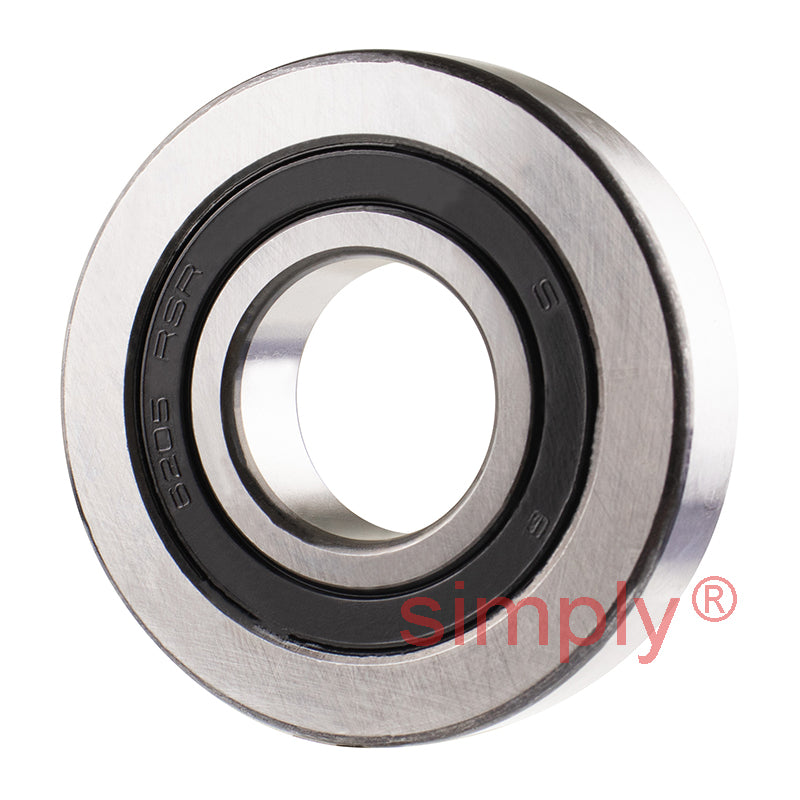

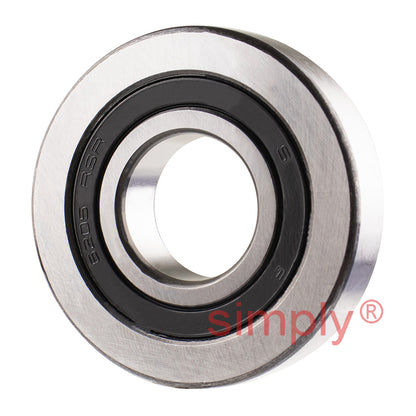

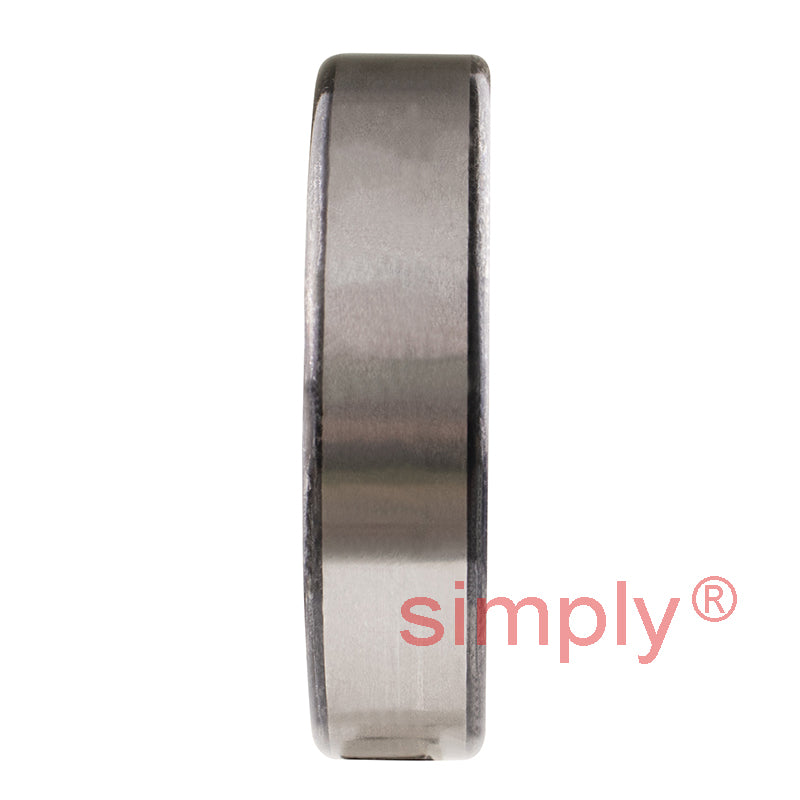

INA LR2052RSR Rubber Sealed Track Roller with Crowned Outer Race 25x62x15mm
INA LR2052RSR Rubber Sealed Track Roller with Crowned Outer Race 25x62x15mm
Regular price
CHF 31.00
ex VAT
Regular price
Sale price
CHF 31.00
ex VAT
Equivalent to: LR205-2RSR LR205-NPPU LR2052RS LR205NPPU
In stock
Price Break
3+
CHF 24.31
5+
CHF 22.95
9+
CHF 22.68
19+
CHF 22.40
49+
CHF 22.13
74+
CHF 21.86
99+
CHF 20.49
199+
CHF 20.22
249+
CHF 19.94
499+
CHF 19.67
999+
CHF 19.12
Description
Description
Rubber Sealed Track Roller Bearing with a Spherical Outer: This range of self-retaining track roller bearings have a crowned outer raceways with thicker walls. They are able to take on high radial forces and can support axial force in both directions. This 2RSR range has lip seals on both sides giving radial sealing action.
Benefits: Maintenance free, capable of withstanding high radial and axial forces
Equivalent: LR205-2RSR LR205-NPPU LR2052RS LR205NPPU
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| C | 15mm |
| d<sub>2</sub> | 33.5mm |
| Crowning Radius (R) | 500mm |
| r<sub>min</sub> | 1mm |
| Mass (m) | 0.23kg |
| Dynamic Load (C<sub>r w</sub>) | 13300N |
| Static Load (C0<sub>r w</sub>) | 7300N |
| Fatigue Limit Load (C<sub>ur w</sub>) | 370N |
| Speed (n<sub>D G</sub>) | 7000 1/min |
