SKU: LR5205-2RS-INA

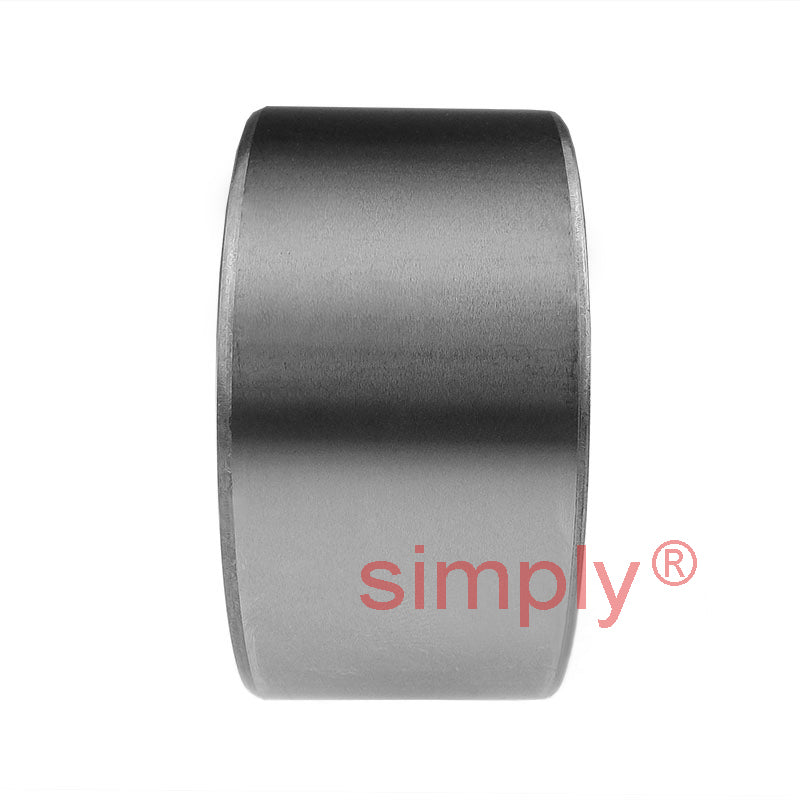

INA LR52052RS Double Row Rubber Sealed Track Roller Bearing 25x62x20.6mm
INA LR52052RS Double Row Rubber Sealed Track Roller Bearing 25x62x20.6mm
Regular price
CHF 64.00
ex VAT
Regular price
Sale price
CHF 64.00
ex VAT
In stock
Price Break
10+
CHF 50.54
19+
CHF 47.70
29+
CHF 47.14
39+
CHF 46.57
49+
CHF 46.00
74+
CHF 45.43
99+
CHF 42.59
199+
CHF 42.02
249+
CHF 41.46
499+
CHF 40.89
999+
CHF 39.75
Description
Description
Rubber Sealed Track Roller Bearing with a Spherical Outer: This range of self-retaining track roller bearings have a crowned outer raceways with thicker walls. They are able to take on high radial forces and can support axial force in both directions. This 2RSR range has lip seals on both sides giving radial sealing action.
Benefits: Maintenance free, capable of withstanding high radial and axial forces
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 20.6mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical

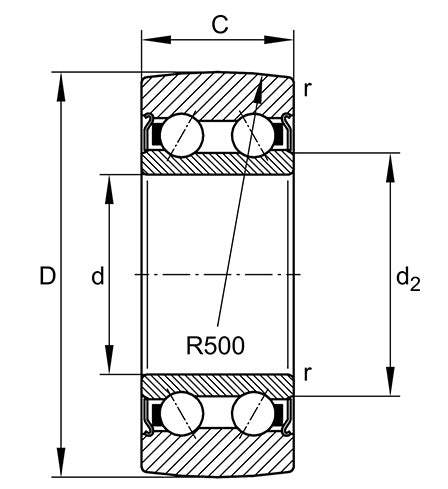

| d | 25mm |
|---|---|
| D | 62mm |
| C | 20.6mm |
| d2 | 34.2mm |
| Crowning radius R | 500mm |
| r min | 1mm |
| Effective dynamic load rating as track roller (radial) Cr w | 19700 N |
| Effective static load rating as track roller (radial) C0r w | 15900 N |
| Permissible dynamic radial load Fr per | 15900 N |
| Fatigue limit load Cur w | 820 N |
| Speed (with continuous operation and grease lubrication) nD G | 4500 rpm |
