SKU: LR606-NPPU-INA

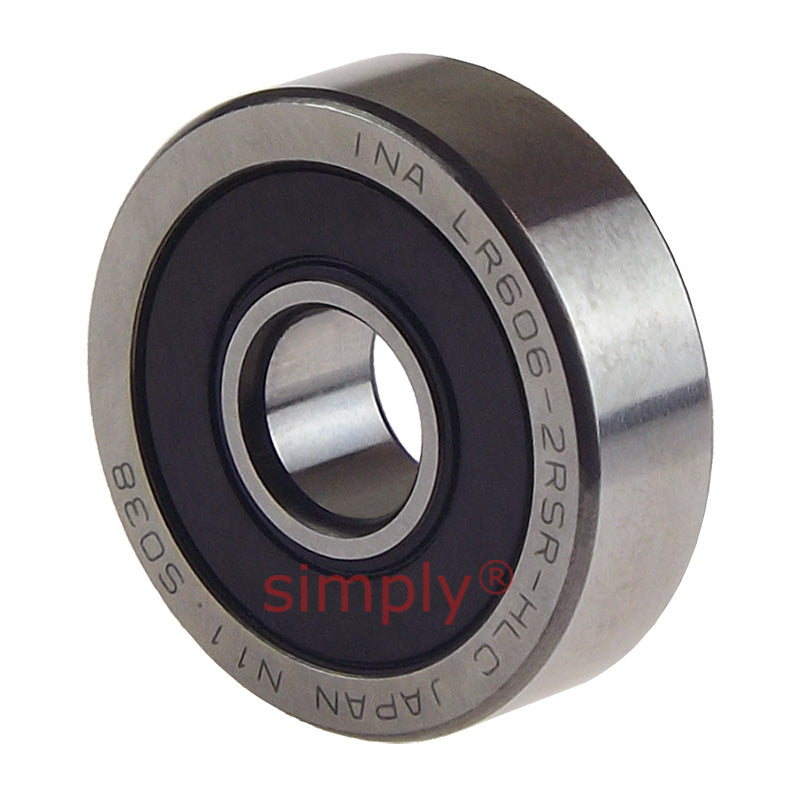

INA LR606NPPU Rubber Sealed Track Roller with Crowned Outer Race 6x19x6mm
INA LR606NPPU Rubber Sealed Track Roller with Crowned Outer Race 6x19x6mm
Regular price
CHF 25.00
ex VAT
Regular price
Sale price
CHF 25.00
ex VAT
Equivalent to: LR606-2RSR LR606-NPPU LR6062RS LR606NPPU
In stock
Price Break
3+
CHF 19.36
5+
CHF 18.27
9+
CHF 18.05
19+
CHF 17.84
49+
CHF 17.62
74+
CHF 17.40
99+
CHF 16.31
199+
CHF 16.10
249+
CHF 15.88
499+
CHF 15.66
999+
CHF 15.23
Description
Description
Rubber Sealed Track Roller Bearing with a Spherical Outer: This range of self-retaining track roller bearings have a crowned outer raceways with thicker walls. They are able to take on high radial forces and can support axial force in both directions. This 2RSR range has lip seals on both sides giving radial sealing action.
Benefits: Maintenance free, capable of withstanding high radial and axial forces
Equivalent: LR606-2RSR LR606-NPPU LR6062RS LR606NPPU
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 6mm
- Outside Diameter:
- 19mm
- Width:
- 6mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 6mm |
|---|---|
| D | 19mm |
| C | 6mm |
| d<sub>2</sub> | 8.7mm |
| Crowning Radius (R) | 500mm |
| r<sub>min</sub> | 0.3mm |
| Mass (m) | 0.01kg |
| Dynamic Load (C<sub>r w</sub>) | 1940N |
| Static Load (C0<sub>r w</sub>) | 790N |
| Fatigue Limit Load (C<sub>ur w</sub>) | 39.5N |
| Speed (n<sub>D G</sub>) | 22000 1/min |
