SKU: LS150190-MB

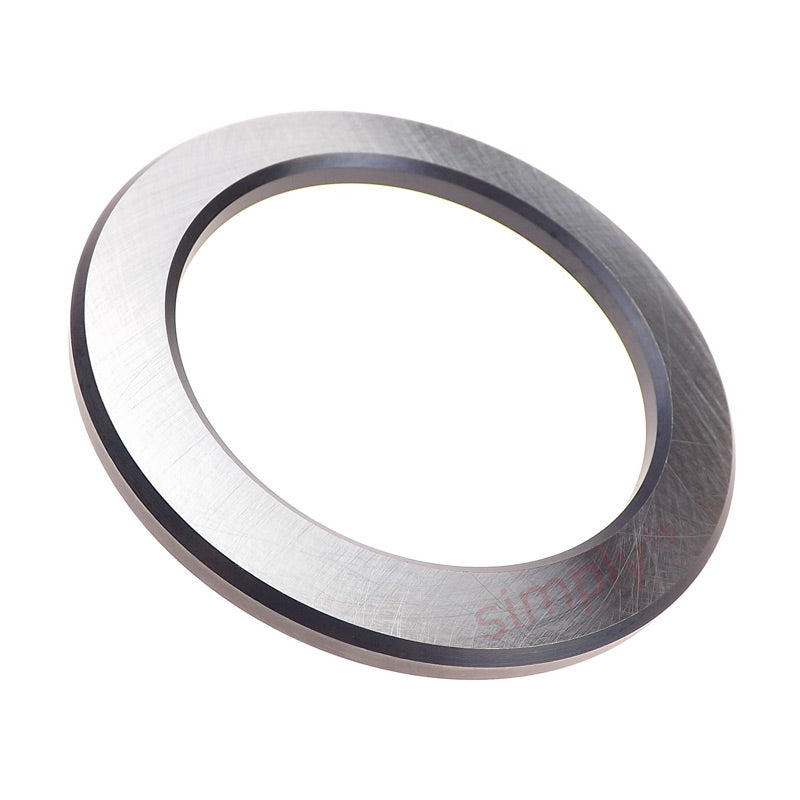

Major Brand LS150190 Raceway Washer Series LS 150x190x9.5mm
Major Brand LS150190 Raceway Washer Series LS 150x190x9.5mm
Regular price
CHF 113.00
ex VAT
Regular price
Sale price
CHF 113.00
ex VAT
In stock
Price Break
10+
CHF 90.03
19+
CHF 84.97
29+
CHF 83.96
39+
CHF 82.95
49+
CHF 81.94
74+
CHF 80.93
99+
CHF 75.87
199+
CHF 74.86
249+
CHF 73.85
499+
CHF 72.83
999+
CHF 70.81
Description
Description
|
LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished and are only 3mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 150mm
- Outside Diameter:
- 190mm
- Width:
- 9.5mm
Technical
Technical
| d | 150mm |
|---|---|
| d1 | 188mm |
| D | 190mm |
| D1 | 152mm |
| B | 9.5mm |
| r1r2 | 1mm |
| Weight | 795 g |
