SKU: LS160200-MB

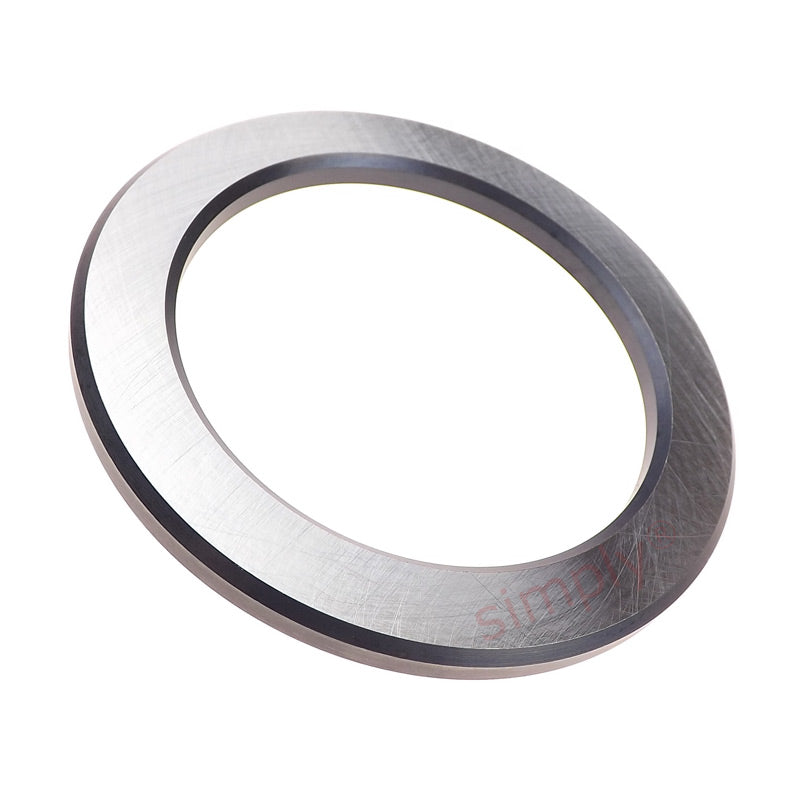

Major Brand LS160200 Raceway Washer Series LS 160x200x9.5mm
Major Brand LS160200 Raceway Washer Series LS 160x200x9.5mm
Regular price
CHF 137.11
ex VAT
Regular price
Sale price
CHF 137.11
ex VAT
In stock
Price Break
10+
CHF 122.03
19+
CHF 115.17
29+
CHF 113.80
39+
CHF 112.43
49+
CHF 111.06
74+
CHF 109.69
99+
CHF 102.83
199+
CHF 101.46
249+
CHF 100.09
499+
CHF 98.72
999+
CHF 95.98
Couldn't load pickup availability
Description
Description
|
LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished and are only 3mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 200mm
- Width:
- 9.5mm
Technical
Technical
| d | 160mm |
|---|---|
| d1 | 198mm |
| D | 200mm |
| D1 | 162mm |
| B | 9.5mm |
| r1r2 | 1mm |
| Weight | 840 g |
