• Major Brand LS3047 Raceway Washer Series LS 30x47x3mm
1 1

SKU: LS3047-MB

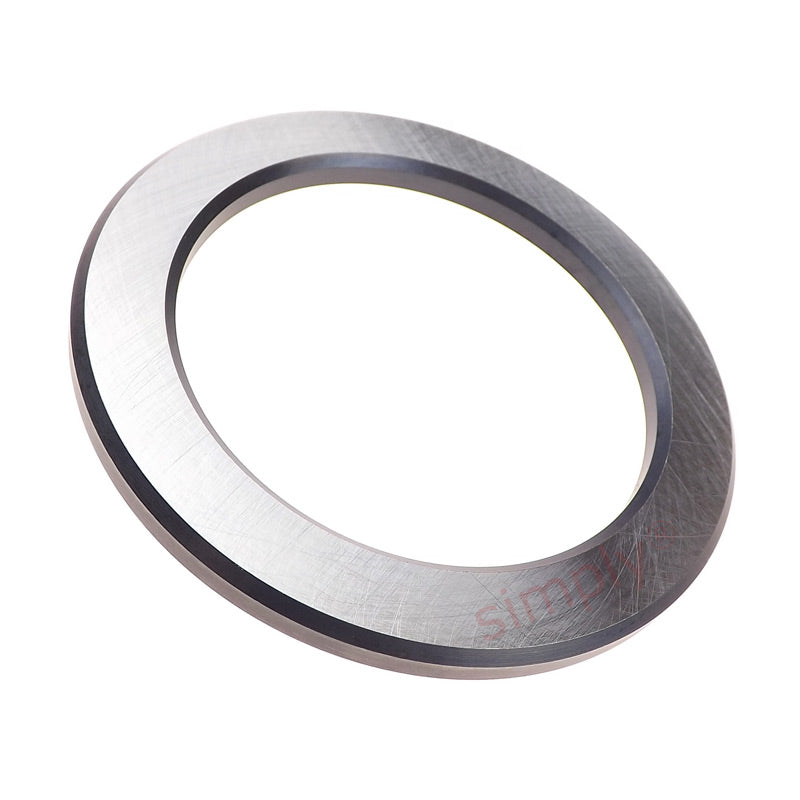

Major Brand LS3047 Raceway Washer Series LS 30x47x3mm

Major Brand LS3047 Raceway Washer Series LS 30x47x3mm
CHF 6.00 ex VAT
CHF 6.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 4.73
19+ CHF 4.46
29+ CHF 4.41
39+ CHF 4.35
49+ CHF 4.30
74+ CHF 4.25
99+ CHF 3.98
199+ CHF 3.93
249+ CHF 3.88
499+ CHF 3.82
999+ CHF 3.72
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished and are only 3mm thick. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy.
Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive.
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
30mm
Outside Diameter:
47mm
Width:
3mm
Technical
d 30mm
d1 47mm
D 47mm
D1 32mm
B 3mm
r1r2 0.6mm
Weight 22 g
