SKU: LS75100-EU

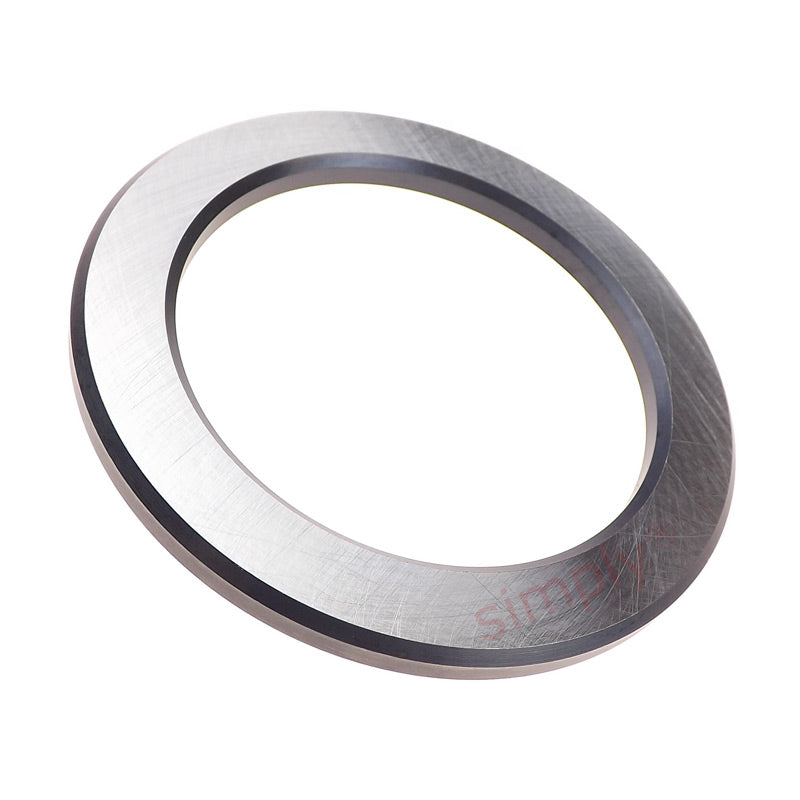

LS75100 Budget Raceway Washer Series LS 75x100x5.75mm
LS75100 Budget Raceway Washer Series LS 75x100x5.75mm
Regular price
CHF 38.50
ex VAT
Regular price
Sale price
CHF 38.50
ex VAT
In stock
Price Break
10+
CHF 34.27
19+
CHF 32.34
29+
CHF 31.96
39+
CHF 31.57
49+
CHF 31.19
74+
CHF 30.80
99+
CHF 28.88
199+
CHF 28.49
249+
CHF 28.11
499+
CHF 27.72
999+
CHF 26.95
Couldn't load pickup availability
Description
Description
|
Budget LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy. Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 100mm
- Width:
- 5.75mm
Technical
Technical
| d | 75mm |
|---|---|
| d1 | 100mm |
| D | 100mm |
| D1 | 77mm |
| B | 5.75mm |
| r1r2 | 1mm |
| Weight | 140 g |
