SKU: LS90120-EU

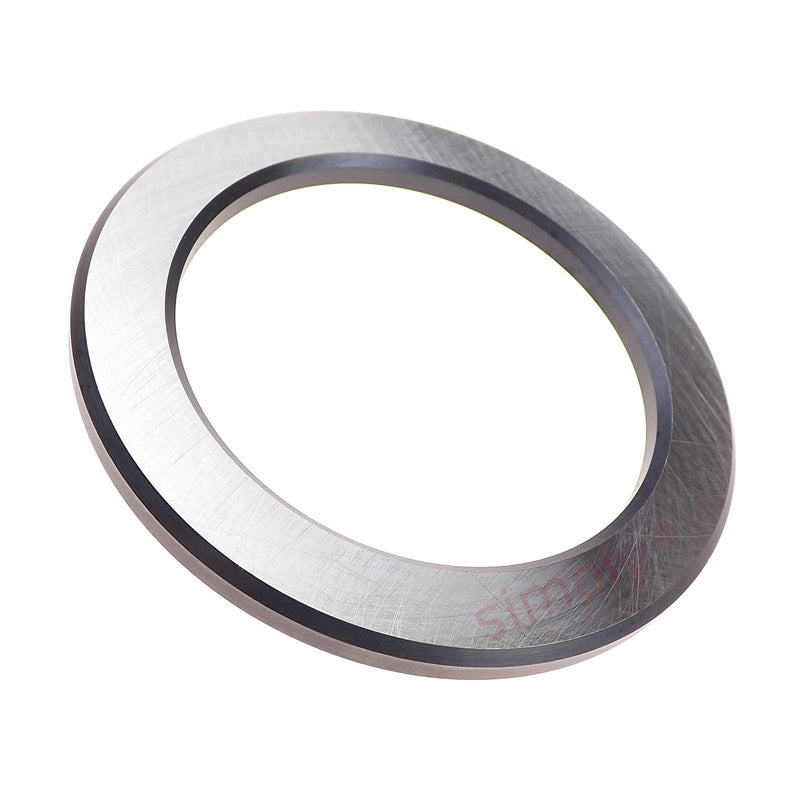

LS90120 Budget Raceway Washer Series LS 90x120x6.5mm

Name: LS90120 Budget Raceway Washer Series LS 90x120x6.5mm
Brand: Gen
SKU: LS90120-EU
Price: 10.00 CHF
Availability: InStock

CHF 10.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 7.71

19+ CHF 7.27

29+ CHF 7.19

39+ CHF 7.10

49+ CHF 7.01

74+ CHF 6.93

99+ CHF 6.50

199+ CHF 6.41

249+ CHF 6.32

499+ CHF 6.24

999+ CHF 6.06

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget LS Series Thrust Washers: Made of spring steel these thrust washers are hardened and polished. These washers enable a very economic bearing arrangements and serve as both shaft and housing raceways having moderate stiffness and running accuracy.
Benefits: Economical in the use of space, accurately machined and polished, hardened spring steel, moderate running accuracy and stiffness, inexpensive.

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 90mm
Outside Diameter:: 120mm
Width:: 6.5mm

Technical

d	90mm
d1	120mm
D	120mm
D1	92mm
B	6.5mm
r1r2	1mm
Weight	235 g
