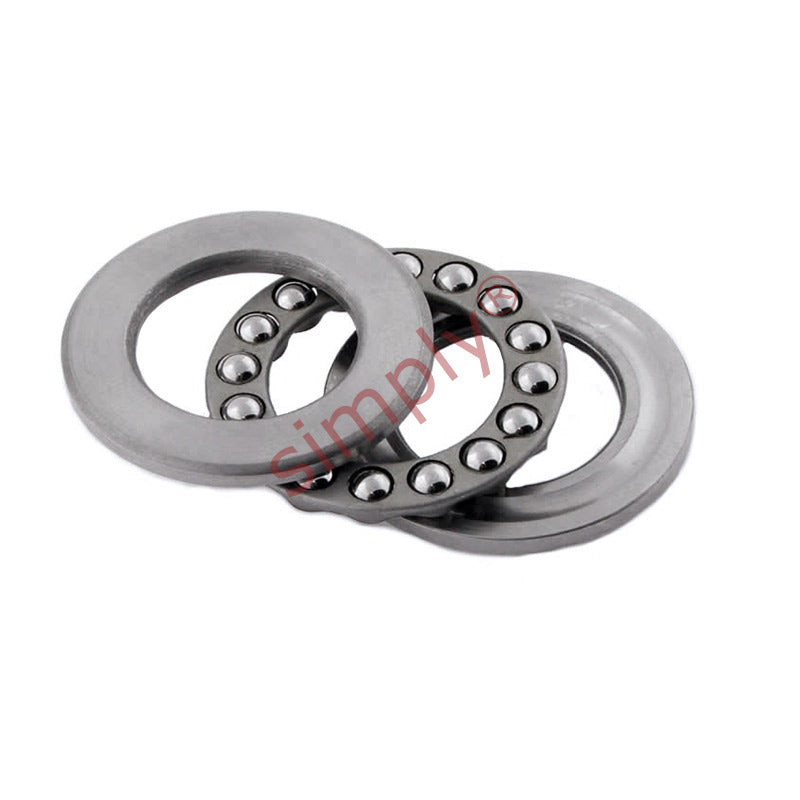

• LT9/16 Imperial Thrust Ball Bearing 9/16x1-13/32x5/8 inch
1 1

SKU: LT.9/16

LT9/16 Imperial Thrust Ball Bearing 9/16x1-13/32x5/8 inch

LT9/16 Imperial Thrust Ball Bearing 9/16x1-13/32x5/8 inch
CHF 23.00 ex VAT
CHF 23.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 17.63
19+ CHF 16.64
29+ CHF 16.45
39+ CHF 16.25
49+ CHF 16.05
74+ CHF 15.85
99+ CHF 14.86
199+ CHF 14.66
249+ CHF 14.46
499+ CHF 14.27
999+ CHF 13.87
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Imperial Ball Thrust Bearings: Consisting of two grooved washers and a ball race supported in a cage assembly. For ease of assembly they are separable into the three components permitting each part to be mounted individually, This style of bearing offers some element of shaft location, axial load and limited radial load.
Benefits: Cost effective, separable for ease of mounting, axial loading
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
14.29mm = 0.563 (9/16) inch
Outside Diameter:
35.72mm = 1.406 (1-13/32) inch
Width:
15.88mm = 0.625 (5/8) inch
Technical
Shaft Washer Bore(d) 9/16 inch
Housing Washer Bore(D1) 19/32 inch
Shaft Washer Outside Diameter(d1) 1-3/8 inch
Housing Washer Outside Diameter(D) 1-13/32 inch
Width 5/8 inch
