SKU: M-UCFA208D1-NTN

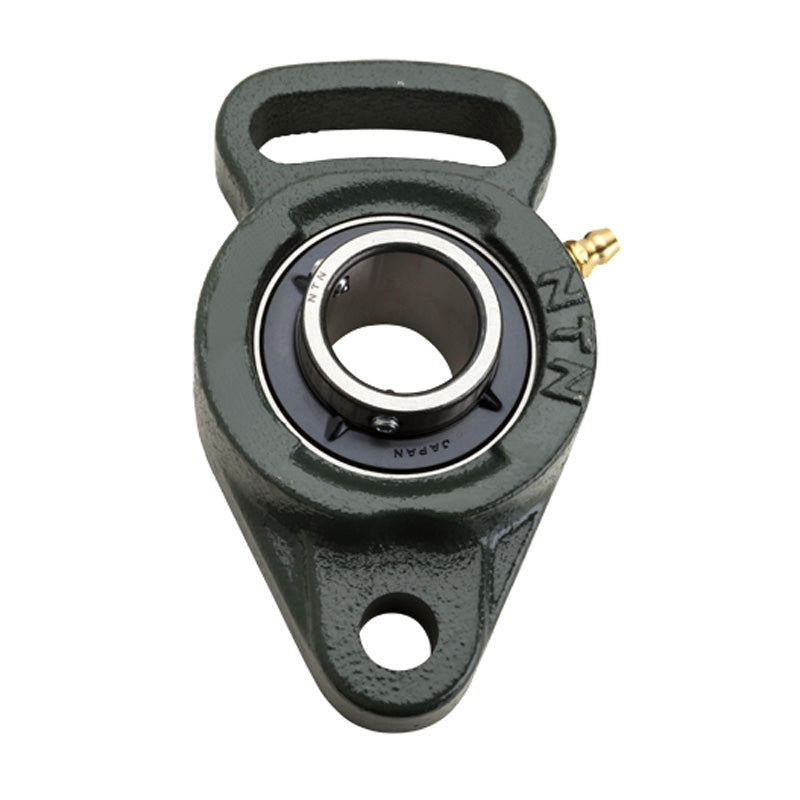

NTN M-UCFA208D1 Metric Cast Iron Adjustable Flange Unit with 40mm Insert - Allow 2-3 Days
NTN M-UCFA208D1 Metric Cast Iron Adjustable Flange Unit with 40mm Insert - Allow 2-3 Days
Regular price
CHF 62.08
ex VAT
Regular price
Sale price
CHF 62.08
ex VAT
In stock
Price Break
5+
CHF 61.46
10+
CHF 58.98
20+
CHF 57.73
50+
CHF 55.87
100+
CHF 54.63
500+
CHF 51.53
1000+
CHF 43.46
Couldn't load pickup availability
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCFA
- Bolt Hole Centres:
- 142mm
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| H | 171mm |
| J | 142mm |
| A<sub>2</sub> | 22mm |
| A<sub>1</sub> | 16mm |
| A | 36mm |
| N | 15mm |
| N<sub>1</sub> | 69mm |
| L | 100mm |
| L<sub>1</sub> | 84mm |
| A<sub>0</sub> | 52.2mm |
| B | 49.2mm |
| S | 19mm |
| Fixing bolt | M12 |
| Mass | 1.5 kg |
