SKU: M-UCFH205D1-NTN

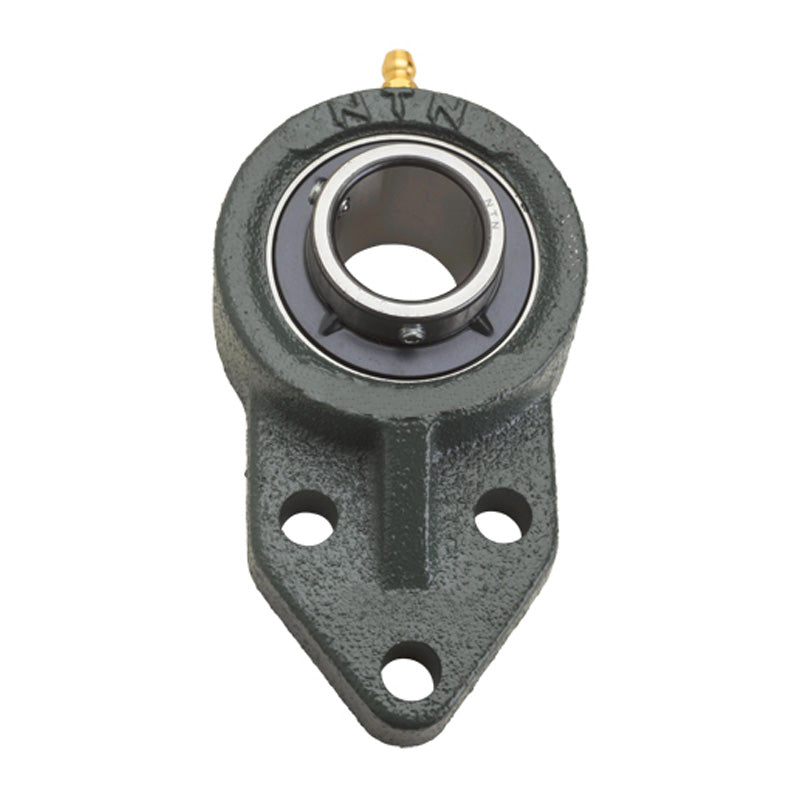

NTN M-UCFH205D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 25mm Bore
NTN M-UCFH205D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 25mm Bore
Regular price
CHF 29.70
ex VAT
Regular price
Sale price
CHF 29.70
ex VAT
In stock
Price Break
10+
CHF 26.43
19+
CHF 24.95
29+
CHF 24.65
39+
CHF 24.35
49+
CHF 24.06
74+
CHF 23.76
99+
CHF 22.28
199+
CHF 21.98
249+
CHF 21.68
499+
CHF 21.38
999+
CHF 20.79
Couldn't load pickup availability
Description
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCFH
- Bolt Hole Centres:
- 34mm

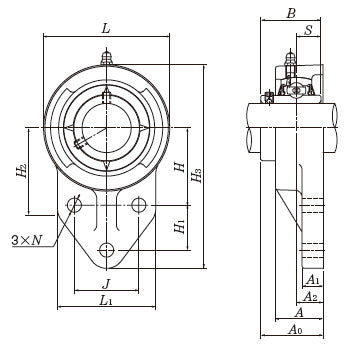

Technical
Technical
| Shaft diameter | 25mm |
|---|---|
| H<sub>3</sub> | 116mm |
| J | 34mm |
| A<sub>2</sub> | 16mm |
| A<sub>1</sub> | 13mm |
| A | 27mm |
| N | 10mm |
| H | 45mm |
| H<sub>1</sub> | 27mm |
| L<sub>1</sub> | 56mm |
| H<sub>2</sub> | 52mm |
| L | 68mm |
| A<sub>0</sub> | 35.8mm |
| B | 34.1mm |
| S | 14.3mm |
| Fixing bolt | M8 |
| Mass | 0.7 kg |
