SKU: M-UCHB208D1-NTN

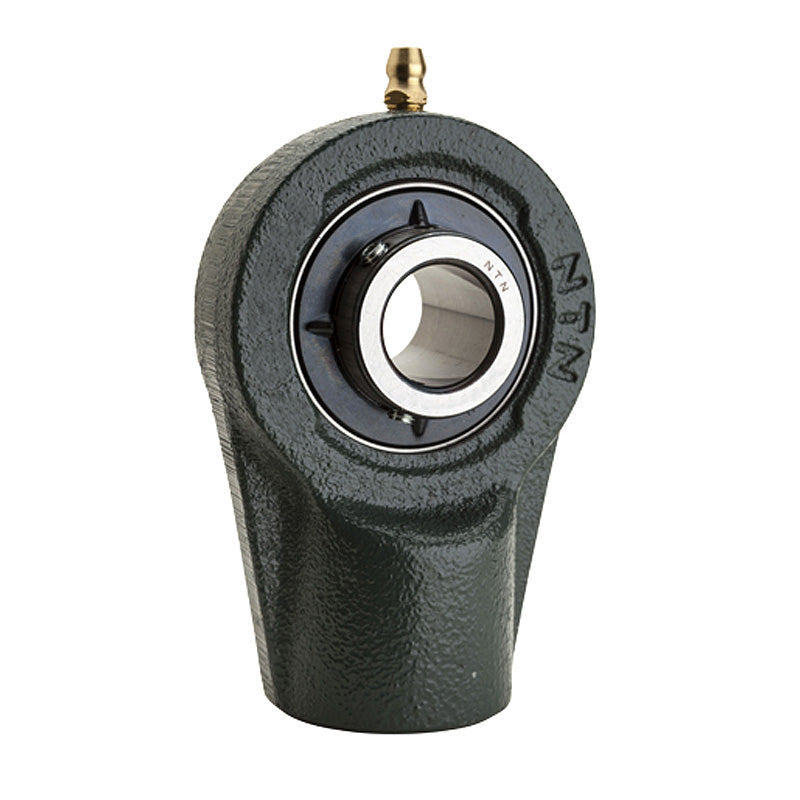

NTN M-UCHB208D1 Metric Cast Iron Hanger Bearing Unit with 40mm Bore Insert - Allow 2-3 Days
NTN M-UCHB208D1 Metric Cast Iron Hanger Bearing Unit with 40mm Bore Insert - Allow 2-3 Days
Regular price
CHF 75.00
ex VAT
Regular price
Sale price
CHF 75.00
ex VAT
In stock
Price Break
3+
CHF 65.76
4+
CHF 63.10
9+
CHF 61.77
19+
CHF 59.78
49+
CHF 58.45
99+
CHF 55.13
499+
CHF 46.49
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
UCHB200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCHB
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| L | 96mm |
| H<sub>1</sub> | 121mm |
| c | 2mm |
| A | 33mm |
| H | 73mm |
| N | RP3/4 |
| D | 40mm |
| j | 19mm |
| B | 49.2mm |
| S | 19mm |
| Mass | 1.3 kg |
