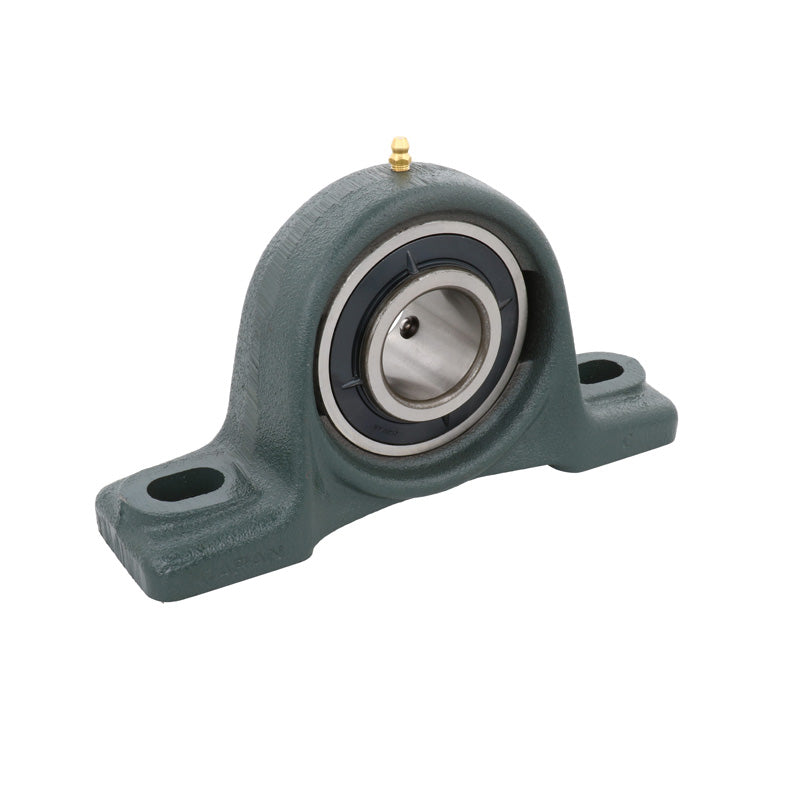

NTN M-UCP204D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert - Allow 2-3 Days
NTN M-UCP204D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 20mm Bore Insert - Allow 2-3 Days
Regular price
CHF 26.00
ex VAT
Regular price
Sale price
CHF 26.00
ex VAT
In stock
Price Break
3+
CHF 20.33
4+
CHF 19.19
9+
CHF 18.96
19+
CHF 18.73
49+
CHF 18.50
99+
CHF 18.27
499+
CHF 17.13
999+
CHF 16.90
1999+
CHF 16.67
2999+
CHF 16.44
4999+
CHF 15.99
Description
Description
|
UCP or NP Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Style:
- UCP
- Bolt Hole Centres:
- 95mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 20mm |
| H | 33.3mm |
| L | 127mm |
| J | 95mm |
| A | 38mm |
| N | 13mm |
| N<sub>1</sub> | 16mm |
| H<sub>1</sub> | 14mm |
| H<sub>2</sub> | 65mm |
| L<sub>1</sub> | 42mm |
| B | 31mm |
| S | 12.7mm |
| Fixing bolt | M10 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 14.2 kN |
| Static load C<sub>0r</sub> | 6.65 kN |
| Fatigue load limit C<sub>u</sub> | 0.505 kN |
| --- | Unit information |
| Mass | 0.7 kg |
