SKU: M-UCUP205D1-NTN

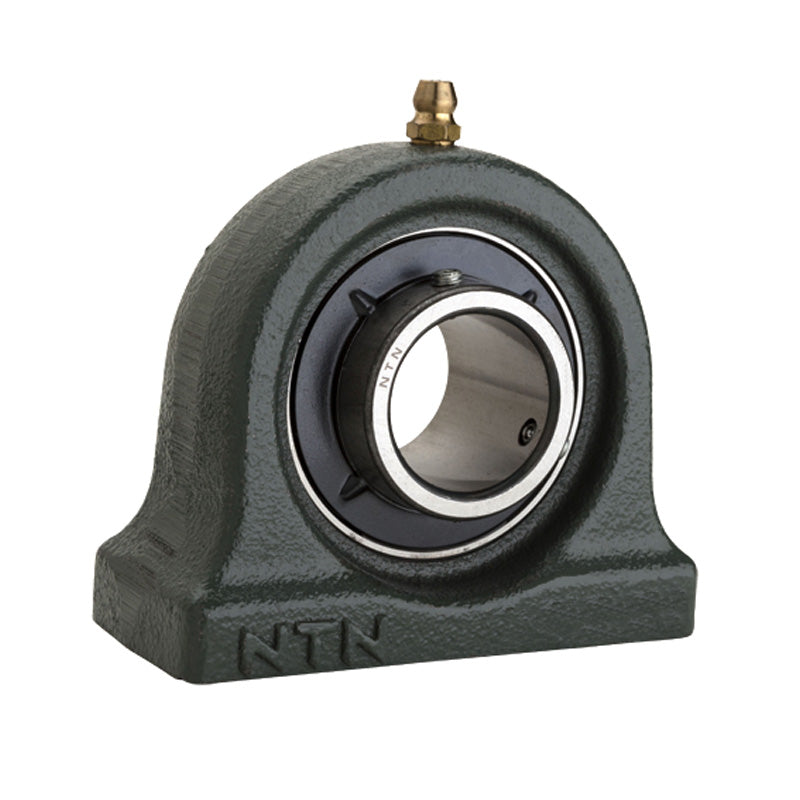

NTN M-UCUP205D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert - Allow 2-3 Days
NTN M-UCUP205D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert - Allow 2-3 Days
Regular price
CHF 34.81
ex VAT
Regular price
Sale price
CHF 34.81
ex VAT
In stock
Price Break
5+
CHF 34.46
10+
CHF 33.07
20+
CHF 32.37
50+
CHF 31.33
100+
CHF 30.63
500+
CHF 28.89
1000+
CHF 24.37
Couldn't load pickup availability
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25mm
- Style:
- UCUP
- Bolt Hole Centres:
- 56mm
Technical
Technical
| Shaft diameter | 25mm |
|---|---|
| H | 36.5mm |
| L | 84mm |
| J | 56mm |
| A | 38mm |
| j | 15mm |
| H<sub>1</sub> | 12mm |
| H<sub>2</sub> | 72mm |
| B | 34.1mm |
| S | 14.3mm |
| N | M10X1.5 |
| Mass | 0.7 kg |
