SKU: M-UCUP208D1-NTN

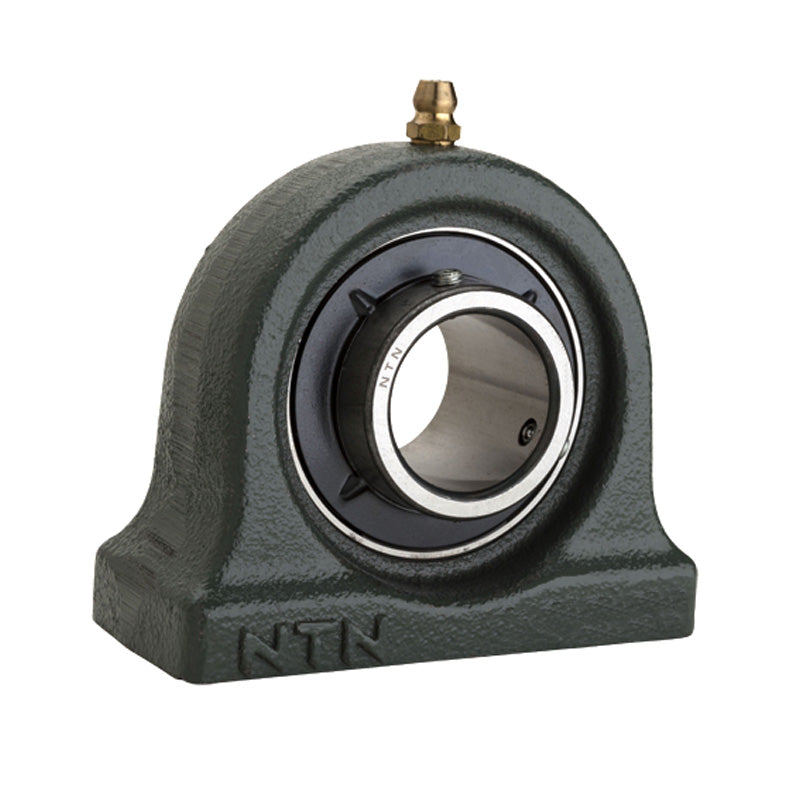

NTN M-UCUP208D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert - Allow 2-3 Days
NTN M-UCUP208D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert - Allow 2-3 Days
Regular price
CHF 51.23
ex VAT
Regular price
Sale price
CHF 51.23
ex VAT
In stock
Price Break
10+
CHF 45.59
19+
CHF 43.03
29+
CHF 42.52
39+
CHF 42.01
49+
CHF 41.50
74+
CHF 40.98
99+
CHF 38.42
199+
CHF 37.91
249+
CHF 37.40
499+
CHF 36.89
999+
CHF 35.86
Couldn't load pickup availability
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCUP
- Bolt Hole Centres:
- 84mm
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| H | 49.2mm |
| L | 116mm |
| J | 84mm |
| A | 54mm |
| j | 20mm |
| H<sub>1</sub> | 13mm |
| H<sub>2</sub> | 100mm |
| B | 49.2mm |
| S | 19mm |
| N | M14X2 |
| Mass | 1.8 kg |
