SKU: M-UCUP210D1-NTN

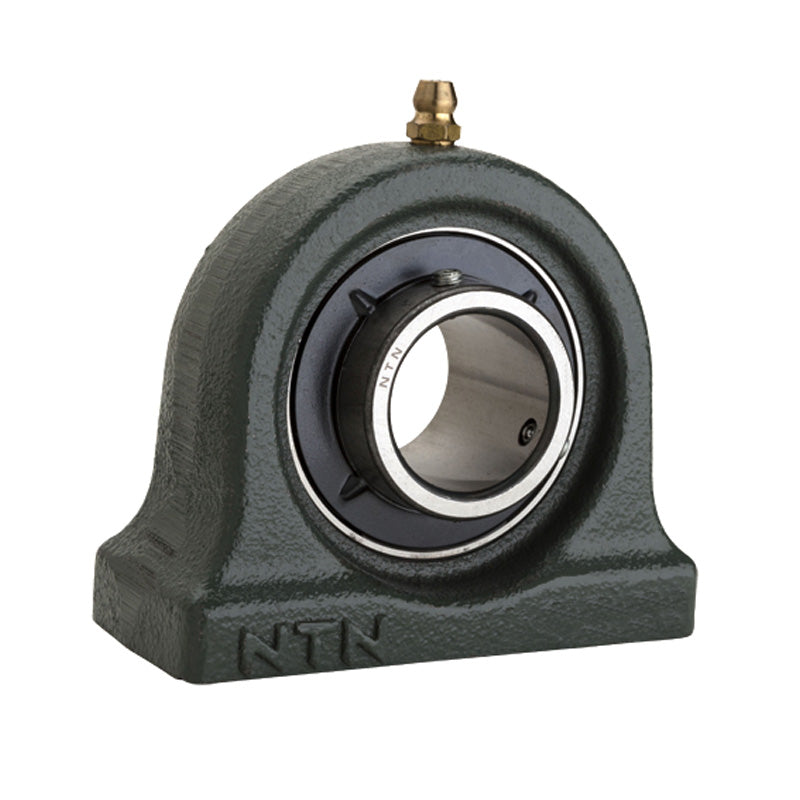

NTN M-UCUP210D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert - Allow 2-3 Days
NTN M-UCUP210D1 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert - Allow 2-3 Days
Regular price
CHF 61.00
ex VAT
Regular price
Sale price
CHF 61.00
ex VAT
In stock
Price Break
3+
CHF 48.60
4+
CHF 45.87
9+
CHF 45.33
19+
CHF 44.78
49+
CHF 44.23
99+
CHF 43.69
499+
CHF 40.96
999+
CHF 40.41
1999+
CHF 39.87
2999+
CHF 39.32
4999+
CHF 38.23
Description
Description
|
UCUP200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCUP
- Bolt Hole Centres:
- 94mm
Technical
Technical
| Shaft diameter | 50mm |
|---|---|
| H | 57.2mm |
| L | 130mm |
| J | 94mm |
| A | 60mm |
| j | 25mm |
| H<sub>1</sub> | 14mm |
| H<sub>2</sub> | 116mm |
| B | 51.6mm |
| S | 19mm |
| N | M16X2 |
| Mass | 2.6 kg |
