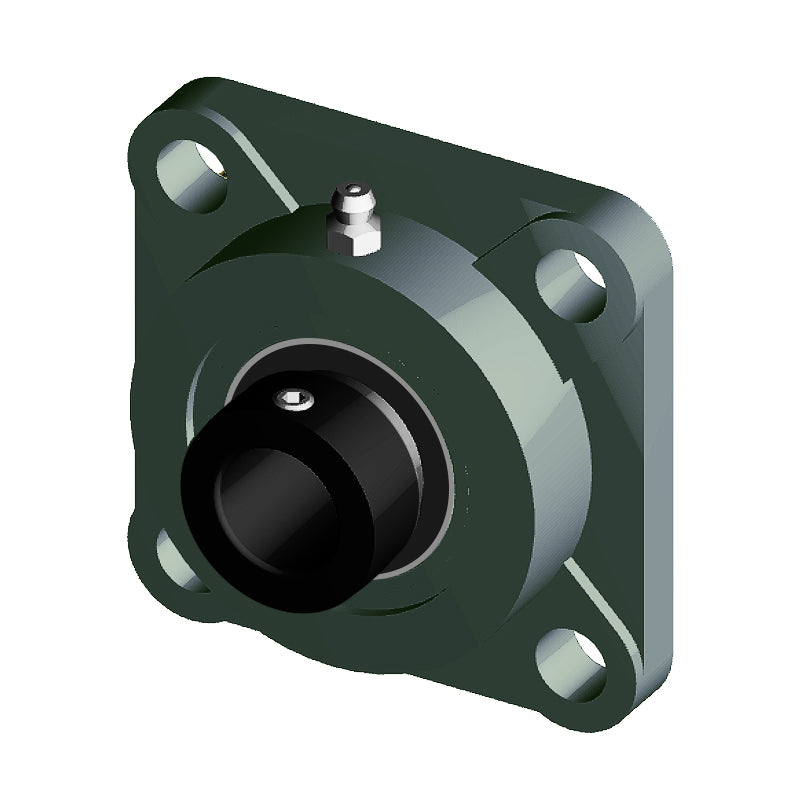

NTN M-UELF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELF208D1 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
CHF 49.00
ex VAT
Regular price
Sale price
CHF 49.00
ex VAT
In stock
Price Break
10+
CHF 43.61
19+
CHF 41.16
29+
CHF 40.67
39+
CHF 40.18
49+
CHF 39.69
74+
CHF 39.20
99+
CHF 36.75
199+
CHF 36.26
249+
CHF 35.77
499+
CHF 35.28
999+
CHF 34.30
Couldn't load pickup availability
Description
Description
UELF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UELF
- Bolt Hole Centres:
- 102mm
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| L | 130mm |
| J | 102mm |
| A<sub>2</sub> | 21mm |
| A<sub>1</sub> | 15mm |
| A | 36mm |
| N | 16mm |
| A<sub>0</sub> | 55.9mm |
| B<sub>1</sub> | 56.3mm |
| S | 21.4mm |
| F min. | 57mm |
| Fixing bolt | M14 |
| Mass | 1.9 kg |
