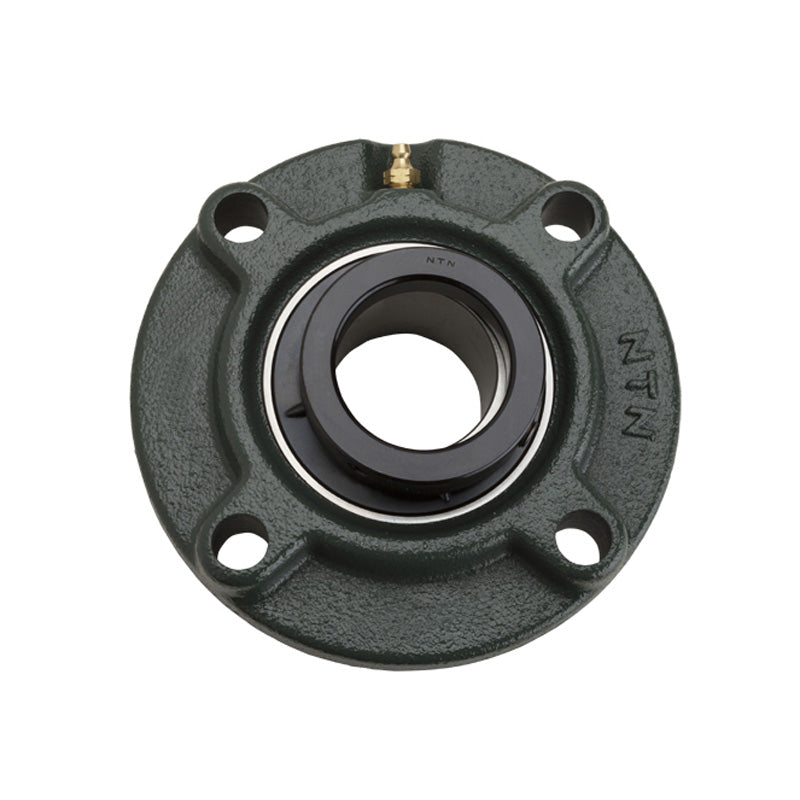

NTN M-UELFC208D1 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELFC208D1 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
CHF 62.00
ex VAT
Regular price
Sale price
CHF 62.00
ex VAT
In stock
Price Break
3+
CHF 54.83
4+
CHF 52.61
9+
CHF 51.50
19+
CHF 49.84
49+
CHF 48.73
99+
CHF 45.97
499+
CHF 38.77
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
UELFC200 Series 4 Bolt Cast Iron Round Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UELFC
- Pitch Circle Diameter:
- 84.9mm
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| L | 145mm |
| J | 120mm |
| (J<sub>1</sub> | 84.9mm |
| A<sub>2</sub> | 11mm |
| N | 14mm |
| A<sub>3</sub> | 10mm |
| A<sub>1</sub> | 26mm |
| A | 36mm |
| H<sub>3</sub> | 100mm |
| A<sub>0</sub> | 55.9mm |
| B<sub>1</sub> | 56.3mm |
| S | 21.4mm |
| F min. | 59mm |
| Fixing bolt | M12 |
| Mass | 2.1 kg |
