SKU: M-UELFL208D1-NTN

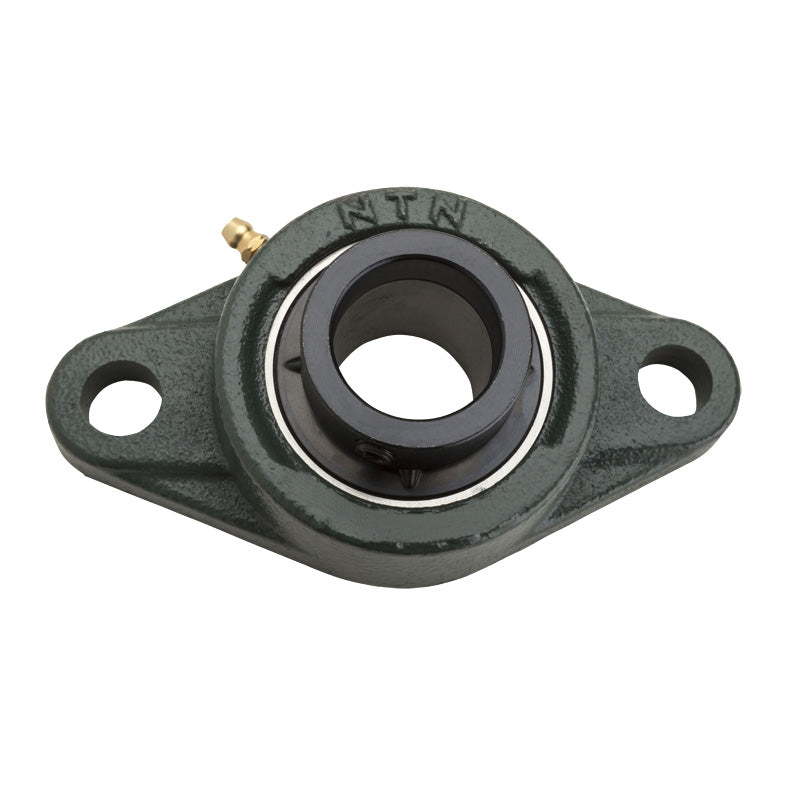

NTN M-UELFL208D1 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
NTN M-UELFL208D1 Metric Two Bolt Cast Iron Oval Housing with 40mm Bore Eccentric Collar Insert - Allow 2-3 Days
Regular price
CHF 62.00
ex VAT
Regular price
Sale price
CHF 62.00
ex VAT
In stock
Price Break
3+
CHF 54.81
4+
CHF 52.59
9+
CHF 51.48
19+
CHF 49.82
49+
CHF 48.72
99+
CHF 45.95
499+
CHF 38.75
999+
CHF 0.00
1999+
CHF 0.00
2999+
CHF 0.00
4999+
CHF 0.00
Share this product
Description
Description
UELFL200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Style:
- UELFL
- Bolt Hole Centres:
- 144mm
Technical
Technical
| Shaft diameter | 40mm |
|---|---|
| H | 175mm |
| J | 144mm |
| A<sub>2</sub> | 21mm |
| A<sub>1</sub> | 15mm |
| A | 36mm |
| N | 16mm |
| L | 100mm |
| A<sub>0</sub> | 55.9mm |
| B<sub>1</sub> | 56.3mm |
| S | 21.4mm |
| F min. | 57mm |
| Fixing bolt | M14 |
| Mass | 1.6 kg |
