SKU: MB.7060.DLX

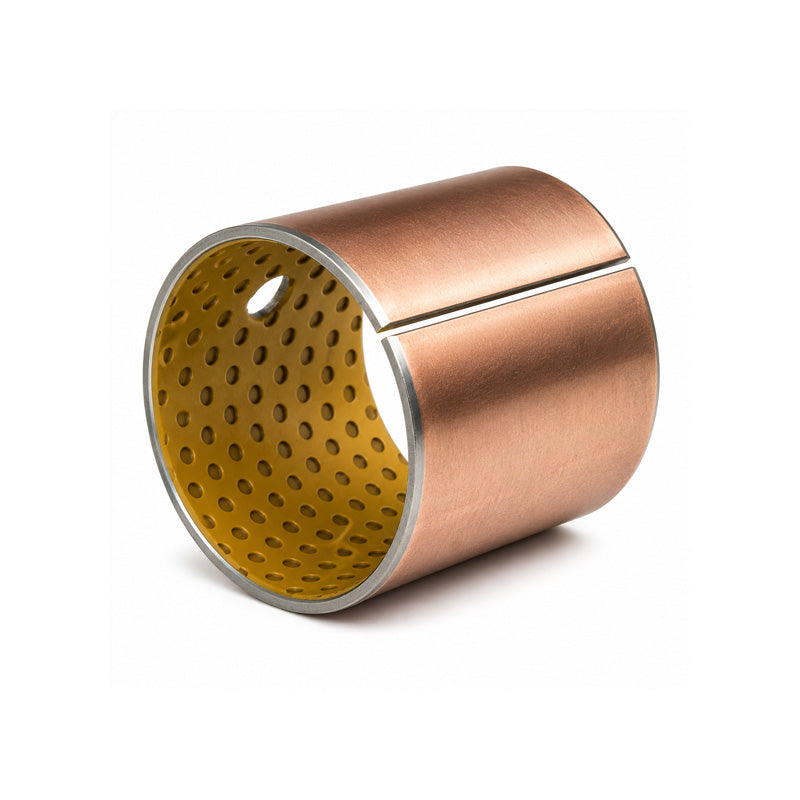

MB7060DX Permaglide Bronze Backed Bush 70x75x60mm
MB7060DX Permaglide Bronze Backed Bush 70x75x60mm
Regular price
CHF 11.16
ex VAT
Regular price
Sale price
CHF 11.16
ex VAT
In stock
Price Break
5+
CHF 11.05
10+
CHF 10.60
20+
CHF 10.38
50+
CHF 10.04
100+
CHF 9.82
500+
CHF 9.26
1000+
CHF 7.81
Couldn't load pickup availability
Description
Description
|
Bronze Backed Plain Steel Bush: Made from a composite material developed specifically to operate with minimal lubrication. This bush bearing consists of three bonded layers - a steel backing strip and sintered porous bronze matrix, impregnated and overlaid with a pigmented acetal copolymer bearing material. The bearing surface is normally provided with a uniform pattern of indents which serve as a reservoir for grease and is designed to provide the optimum distribution of the lubricant over the bearing surface. |
- Brand / Quality:
- Simply Wrapped Steel Bushes - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 75mm
- Length:
- 60mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 75mm |
| b | 60mm |
| Structure | Steel support strip S.A.E 1010. Sintered bronze layer. Co-Acetal polymer |
| Maximum static load | 140 N/mm<sup>2</sup> |
| Maximum dynamic load | 70 N/mm<sup>2</sup> |
| Maximum sliding speed | 2.5m/s with grease |
| Operating temperature | -40°C to +110° C |
| Intermittent maximum temperature | 130° C |
| Thermal conductivity | 2 W/mK |
| Coefficient of friction | 0.05 to 0.12 with grease |
| Recommended housing tolerance | H7 |
| Recommended shaft tolerance | h8 |
| Recommended shaft finish | HB > 200 |
| Recommended shaft hardness | HB > 200 |
