SKU: MB-M08S-MB

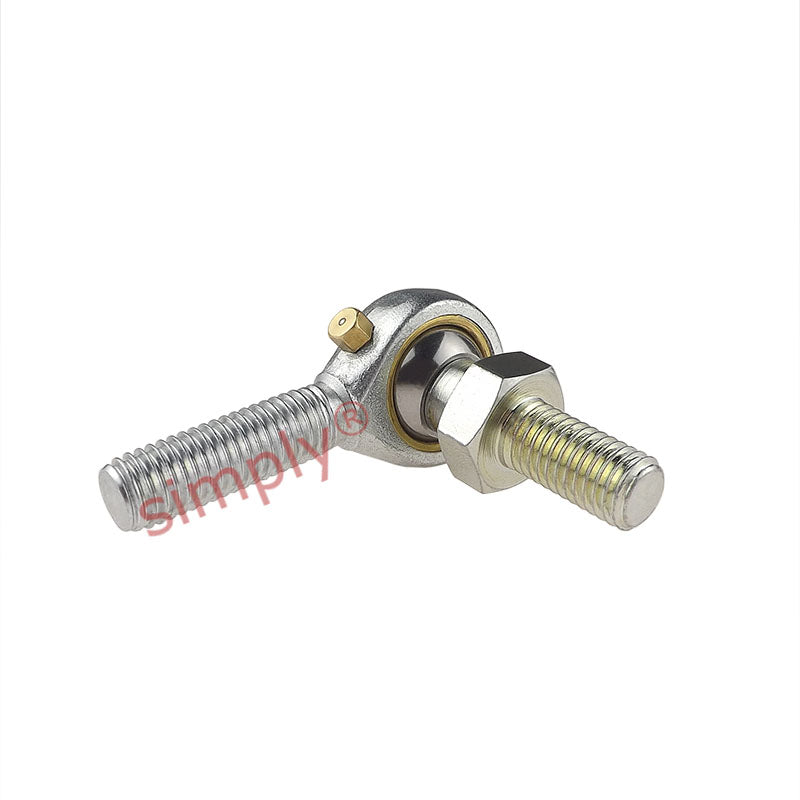

Branded MB-M08S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Male Rod End M8x1.25 Thread
Branded MB-M08S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Male Rod End M8x1.25 Thread
Regular price
CHF 10.00
ex VAT
Regular price
Sale price
CHF 10.00
ex VAT
In stock
Price Break
10+
CHF 7.58
19+
CHF 7.16
29+
CHF 7.07
39+
CHF 6.99
49+
CHF 6.90
74+
CHF 6.82
99+
CHF 6.39
199+
CHF 6.30
249+
CHF 6.22
499+
CHF 6.13
999+
CHF 5.96
Description
Description
|
MBS Studded Bronze Lined Series Maintenance Required, Rod Ends with Male Thread: The studded MB series are a standard range of maintenance required general purpose male rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Suitable for high precision motion transfer applications and extended wear life. Materials: Housing: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Race: Bronze SAE660 and oil impregnated sintered bronze. Ball: Bearing steel 100Cr6, case hardened and electroless nickel plated and stainless steel 440C. Stud: Steel 230M07PB zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Operating Temperature Range: Operating temperature range -34c to +149c Benefits: Low friction, available in metric and imperial thread and bore sizes, extended wear life |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M8x1.25
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | M8 |
|---|---|
| Thread | M8x1.25 |
| A | 16mm |
| B | 16mm |
| C | 14mm |
| K | 13mm |
| Static load | 3190 N |
