SKU: MB12-SKF

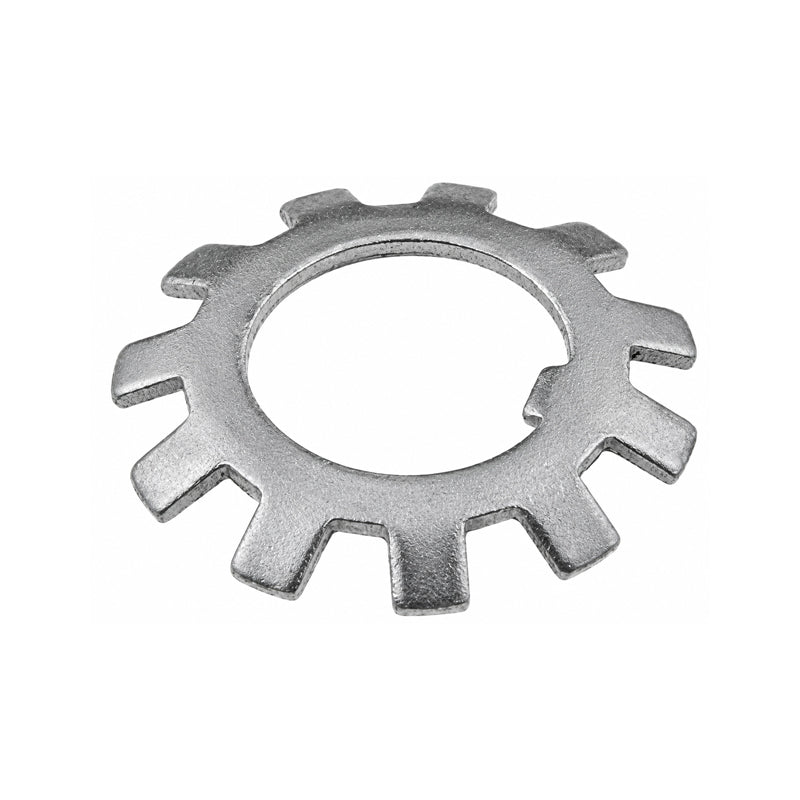

SKF MB12 Locking Tab Washer 60x86x1.5mm
SKF MB12 Locking Tab Washer 60x86x1.5mm
Regular price
CHF 12.00
ex VAT
Regular price
Sale price
CHF 12.00
ex VAT
In stock
Price Break
10+
CHF 9.47
19+
CHF 8.93
29+
CHF 8.83
39+
CHF 8.72
49+
CHF 8.61
74+
CHF 8.51
99+
CHF 7.98
199+
CHF 7.87
249+
CHF 7.76
499+
CHF 7.66
999+
CHF 7.44
Description
Description
|
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. Lock nuts are used with lock nuts of the KM and KML series Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- 60mm
Technical
Technical
| d | 60mm |
|---|---|
| d1 | 73mm |
| d2 | 86mm |
| B | 1.5mm |
| f | 8mm |
| M | 57.5mm |
| Weight | 0.024 kg |
