SKU: MB44-MB

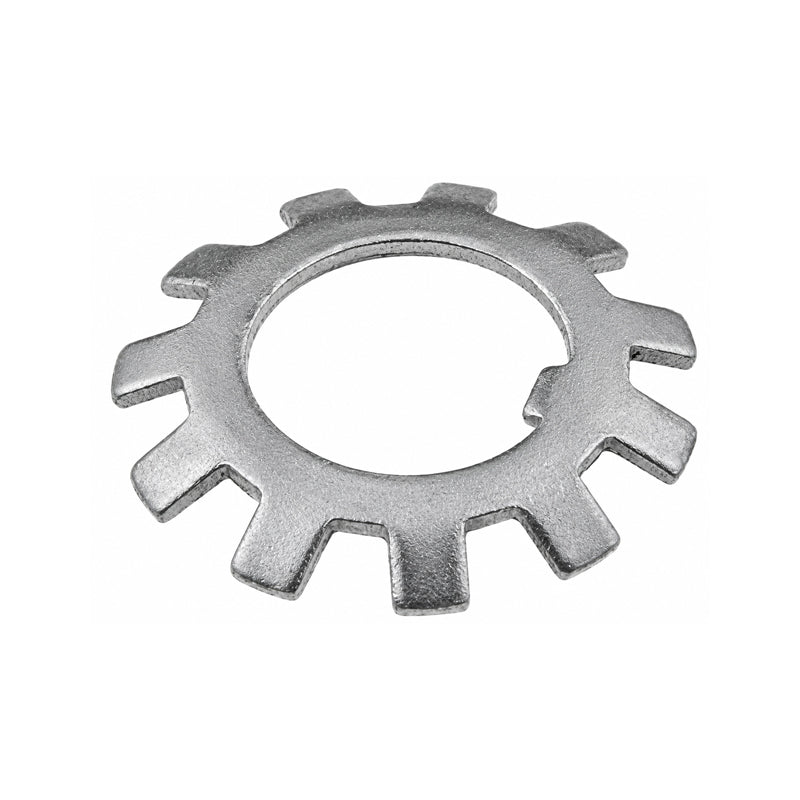

MB44 Locking Tab Washer 220x292x3mm
MB44 Locking Tab Washer 220x292x3mm
Regular price
CHF 88.00
ex VAT
Regular price
Sale price
CHF 88.00
ex VAT
In stock
Price Break
10+
CHF 69.83
19+
CHF 65.91
29+
CHF 65.12
39+
CHF 64.34
49+
CHF 63.55
74+
CHF 62.77
99+
CHF 58.85
199+
CHF 58.06
249+
CHF 57.28
499+
CHF 56.49
999+
CHF 54.92
Description
Description
|
Locking Washers / Tab Washers: These are simple, stable and reliable methods of ensuring that lock nuts remain fastened securely. The central tab locates in a key-way in the shaft and the nut is fitted and tightened to the correct torque, the washer will now have one of its tabs aligned with one of the slots around the lock nut, this tab is folded over into the slot. Lock nuts are used with lock nuts of the KM and KML series Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 220mm
Technical
Technical
| d | 220mm |
|---|---|
| d1 | 250mm |
| d2 | 292mm |
| B | 3mm |
| f | 24mm |
| M | 213mm |
| Weight | 350 g |
