SKU: MFC65-RHP

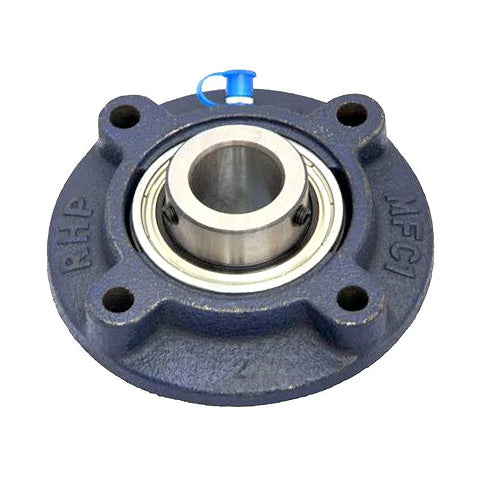

RHP MFC65 Four Bolt Round Cast Iron Flanged Bearing Unit and 65mm Insert
RHP MFC65 Four Bolt Round Cast Iron Flanged Bearing Unit and 65mm Insert
Regular price
CHF 276.60
ex VAT
Regular price
Sale price
CHF 276.60
ex VAT
In stock
Price Break
10+
CHF 246.17
19+
CHF 232.34
29+
CHF 229.58
39+
CHF 226.81
49+
CHF 224.05
74+
CHF 221.28
99+
CHF 207.45
199+
CHF 204.68
249+
CHF 201.92
499+
CHF 199.15
999+
CHF 193.62
Couldn't load pickup availability
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 65mm
- Style:
- MFC
- Pitch Circle Diameter:
- 190.5mm
Technical
Technical
| Bore | 65mm |
|---|---|
| L | 222.2mm |
| H | 161.92mm |
| J | 190.5mm |
| G | 16mm |
| A1 | 50.8mm |
| A4 | 21mm |
| A5 | 12.7mm |
| B | 77.77mm |
| s | 33.37mm |
| d1 | 92mm |
| Dynamic load | 66000 N |
| Static load | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 5.9 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-65G+insonly">1075-65G Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
