SKU: MFC90-RHP
RHP MFC90 Four Bolt Round Cast Iron Flanged Bearing Unit and 90mm Insert
RHP MFC90 Four Bolt Round Cast Iron Flanged Bearing Unit and 90mm Insert
Regular price
CHF 561.00
ex VAT
Regular price
Sale price
CHF 561.00
ex VAT
In stock
Price Break
10+
CHF 446.47
20+
CHF 421.39
30+
CHF 416.37
40+
CHF 411.35
50+
CHF 406.34
75+
CHF 401.32
100+
CHF 376.24
200+
CHF 371.22
250+
CHF 366.20
500+
CHF 361.19
1000+
CHF 351.15
Share this product
Description
Description
|
RHP MFC Series Heavy Duty 4 Bolt Round Cast Iron Housing Units: Four bolt round cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 90mm
- Style:
- MFC
- Pitch Circle Diameter:
- 219.08mm

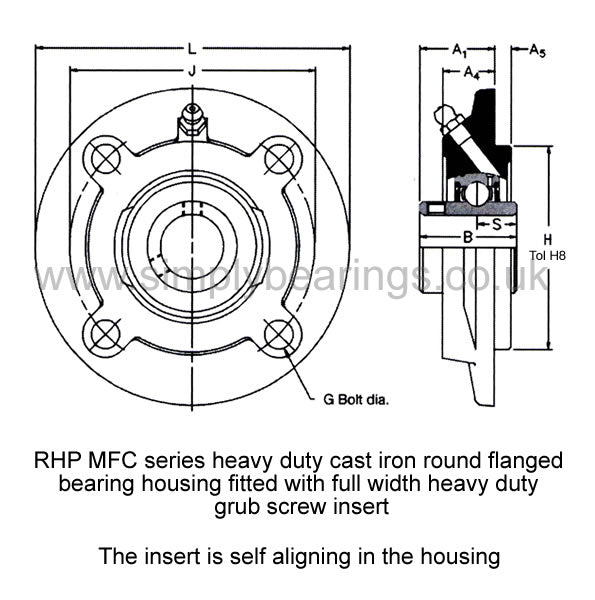

Technical
Technical
| Bore | 90mm |
|---|---|
| L | 260.4mm |
| H | 187.32mm |
| J | 219.08mm |
| G | 20mm |
| A1 | 67.46mm |
| A4 | 29.4mm |
| A5 | 12.7mm |
| B | 96.04mm |
| s | 39.73mm |
| d1 | 111.66mm |
| Dynamic load | 96000 N |
| Static load | 71500 N |
| Rec max speed | 1900 rpm |
| Weight | 9.8 kg |
| Insert | <a href="advanced_search_result.php?keywords=1090-90G+insonly">1090-90G Click Here</a> |
| Casting group | 10 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
