SKU: MP1-RHP

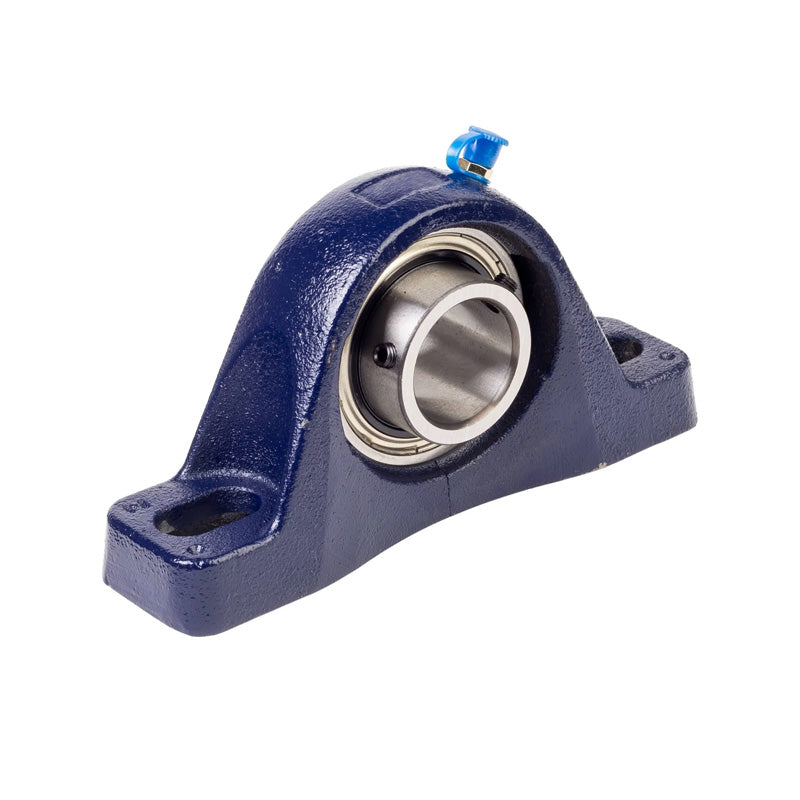

RHP MP1 Two Bolt Cast Iron Pillow Block and 1 Bore Grub Screw Insert
RHP MP1 Two Bolt Cast Iron Pillow Block and 1 Bore Grub Screw Insert
Regular price
CHF 57.26
ex VAT
Regular price
Sale price
CHF 57.26
ex VAT
In stock
Price Break
10+
CHF 50.96
19+
CHF 48.10
29+
CHF 47.53
39+
CHF 46.95
49+
CHF 46.38
74+
CHF 45.81
99+
CHF 42.95
199+
CHF 42.37
249+
CHF 41.80
499+
CHF 41.23
999+
CHF 40.08
Couldn't load pickup availability
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- MP
- Bolt Hole Centres:
- 4.272-5.02 inch
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 6.319 inch |
| H | 1.75 inch |
| H1 | 0.76 inch |
| H2 | 3.319 inch |
| J max | 5.02 inch |
| J min | 4.272 inch |
| G | 0.5 inch |
| A | 1.634 inch |
| A1 | 1.083 inch |
| B | 1.5 inch |
| s | 0.627 inch |
| d1 | 1.575 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1G+insonly">1030-1G Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
