SKU: MP100-RHP

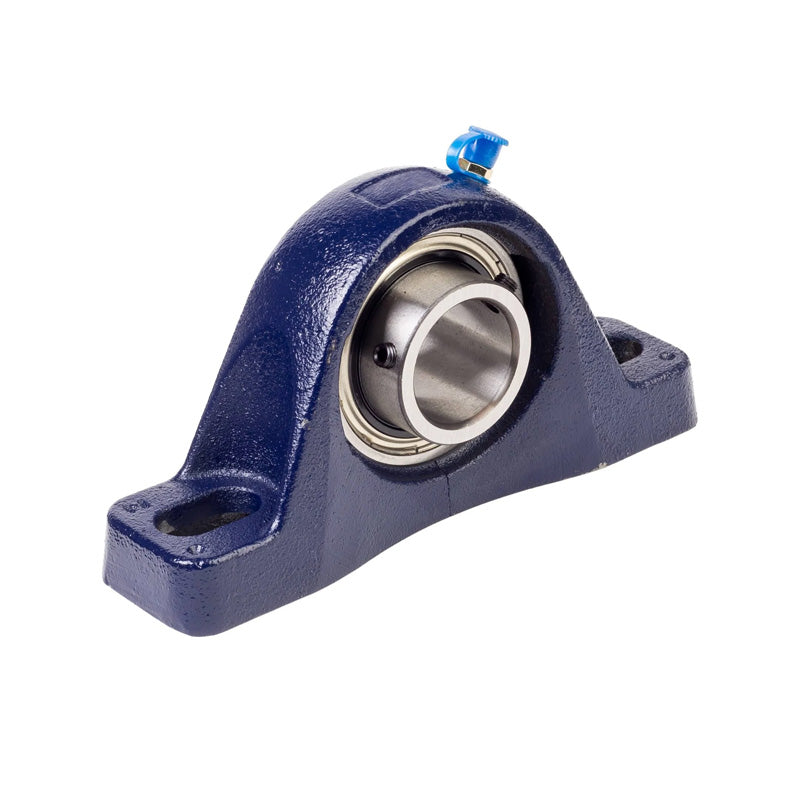

RHP MP100 Two Bolt Cast Iron Pillow Block and 100mm Bore Grub Screw Insert
RHP MP100 Two Bolt Cast Iron Pillow Block and 100mm Bore Grub Screw Insert
Regular price
CHF 672.08
ex VAT
Regular price
Sale price
CHF 672.08
ex VAT
In stock
Price Break
10+
CHF 598.15
19+
CHF 564.55
29+
CHF 557.83
39+
CHF 551.11
49+
CHF 544.38
74+
CHF 537.66
99+
CHF 504.06
199+
CHF 497.34
249+
CHF 490.62
499+
CHF 483.90
999+
CHF 470.46
Couldn't load pickup availability
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 100mm
- Style:
- MP
- Bolt Hole Centres:
- 11.874-14.626mm
Technical
Technical
| Bore | 100mm |
|---|---|
| L | 17 inch |
| H | 5 inch |
| H1 | 1.311 inch |
| H2 | 10 inch |
| J max | 14.626 inch |
| J min | 11.874 inch |
| G | 1 inch |
| A | 4.748 inch |
| A1 | 3.874 inch |
| B | 4.625 inch |
| s | 1.94 inch |
| d1 | 5.135 inch |
| Dynamic load Cr | 157000 N |
| Static load Cor | 122000 N |
| Rec max speed | 1600 rpm |
| Weight | 34.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=3095-100G+insonly">3095-100G Click Here</a> |
| Casting group | 13 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
