SKU: MP3.1/2-RHP

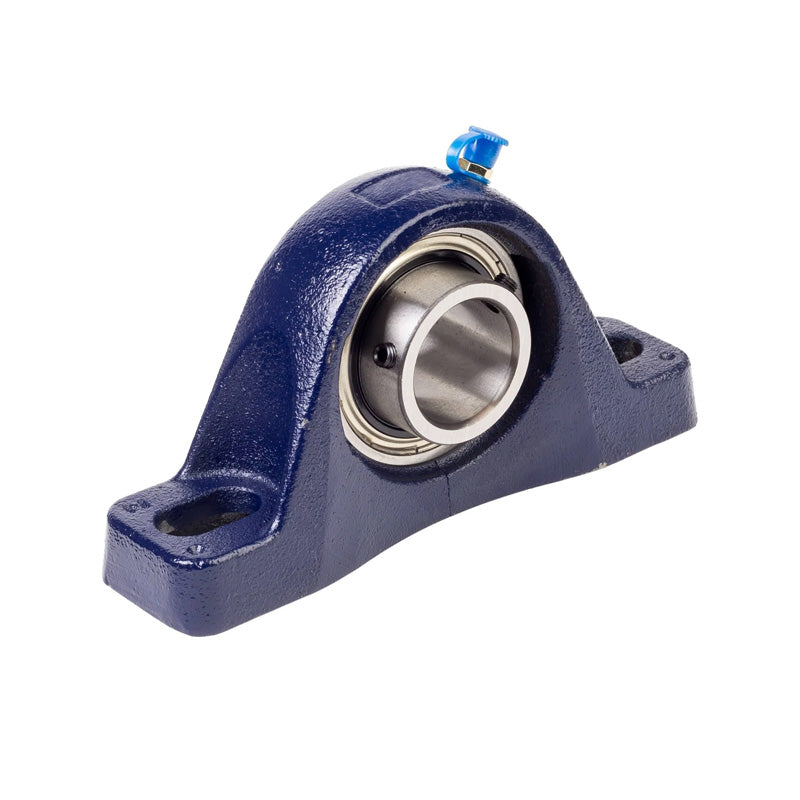

RHP MP3-1/2 Two Bolt Cast Iron Pillow Block and 3-1/2 Bore Grub Screw Insert
RHP MP3-1/2 Two Bolt Cast Iron Pillow Block and 3-1/2 Bore Grub Screw Insert
Regular price
CHF 475.37
ex VAT
Regular price
Sale price
CHF 475.37
ex VAT
In stock
Price Break
10+
CHF 423.08
19+
CHF 399.31
29+
CHF 394.56
39+
CHF 389.80
49+
CHF 385.05
74+
CHF 380.30
99+
CHF 356.53
199+
CHF 351.77
249+
CHF 347.02
499+
CHF 342.27
999+
CHF 332.76
Couldn't load pickup availability
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Style:
- MP
- Bolt Hole Centres:
- 9.689-12.563 inch
Technical
Technical
| Bore | 3-1/2 inch |
|---|---|
| L | 15 inch |
| H | 4000 inch |
| H1 | 1.311 inch |
| H2 | 8.252 inch |
| J max | 12.563 inch |
| J min | 9.689 inch |
| G | 1 inch |
| A | 4.374 inch |
| A1 | 3.126 inch |
| B | 3.781 inch |
| s | 1.564 inch |
| d1 | 4.396 inch |
| Dynamic load Cr | 96000 N |
| Static load Cor | 71500 N |
| Rec max speed | 1900 rpm |
| Weight | 23.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1090-3-1/2G+insonly">1090-3-1/2G Click Here</a> |
| Casting group | 12 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
