SKU: MP70-RHP

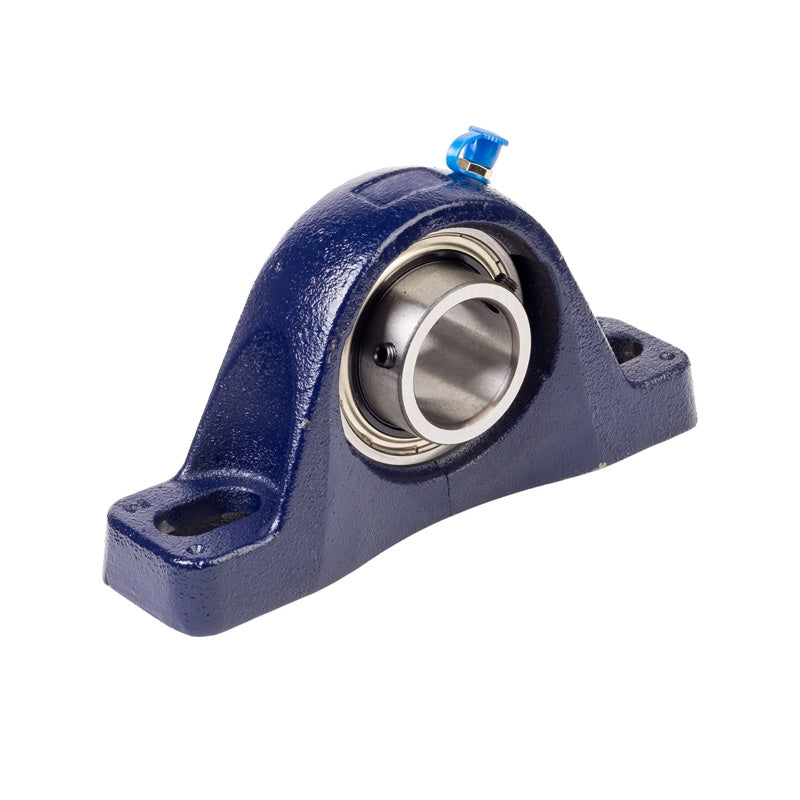

RHP MP70 Two Bolt Cast Iron Pillow Block and 70mm Bore Grub Screw Insert
RHP MP70 Two Bolt Cast Iron Pillow Block and 70mm Bore Grub Screw Insert
Regular price
CHF 322.00
ex VAT
Regular price
Sale price
CHF 322.00
ex VAT
In stock
Price Break
10+
CHF 256.44
20+
CHF 242.03
30+
CHF 239.15
40+
CHF 236.27
50+
CHF 233.39
75+
CHF 230.50
100+
CHF 216.10
200+
CHF 213.22
250+
CHF 210.33
500+
CHF 207.45
1000+
CHF 201.69
Share this product
Description
Description
|
RHP MP Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 70mm
- Style:
- MP
- Bolt Hole Centres:
- 8.11-10.063mm
Technical
Technical
| Bore | 70mm |
|---|---|
| L | 13 inch |
| H | 3.5 inch |
| H1 | 1.126 inch |
| H2 | 7 inch |
| J max | 10.063 inch |
| J min | 8.11 inch |
| G | 1 inch |
| A | 3.5 inch |
| A1 | 2.626 inch |
| B | 3.062 inch |
| s | 1.314 inch |
| d1 | 3.622 inch |
| Dynamic load Cr | 66000 N |
| Static load Cor | 49500 N |
| Rec max speed | 2300 rpm |
| Weight | 13.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1075-70G+insonly">1075-70G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
