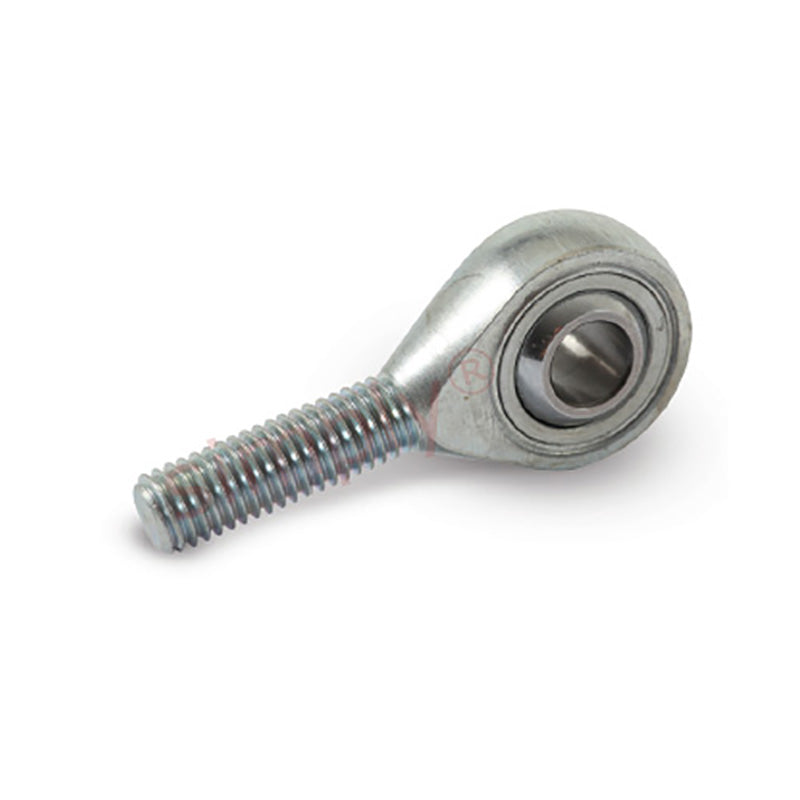

• Branded MS-08F Right Hand Imperial Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End 1/2 BSF Thread - Allow 7-10 Days
1 1

SKU: MS-08F SS-MB

Branded MS-08F Right Hand Imperial Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End 1/2 BSF Thread - Allow 7-10 Days

Branded MS-08F Right Hand Imperial Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End 1/2 BSF Thread - Allow 7-10 Days
CHF 86.00 ex VAT
CHF 86.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 67.84
19+ CHF 64.03
29+ CHF 63.27
39+ CHF 62.51
49+ CHF 61.75
74+ CHF 60.98
99+ CHF 57.17
199+ CHF 56.41
249+ CHF 55.65
499+ CHF 54.89
999+ CHF 53.36
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

MS SS PTFE Lined Series Maintenance Free Male Rod Ends: These stainless steel range of male rod ends incorporate a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, available in both metric and imperial bore thread sizes, they do not require maintenance.
Materials: Housing and inner ring: 230M07PB steel zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Liner: High strength PTFE bronze mesh composite. Ball: Bearing steel 100Cr6, heat treated, polished & electroless nickel plated and stainless steel 440C
Operating Temperature Range: Operating temperature range -200c to + 260c
Benefits: High shock loads, extended wear life, no maintenance
Brand / Quality:
Major Brand - High Quality
Thread Size:
1/2 BSF
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
12.7mm = 0.5 (1/2) inch
Material:
PTFE Lined
Technical
Bore size 1/2 inch
Thread 1/2 BSF
W 0.625 inch
H 0.5 inch
D 1.375 inch
L1 2.438 inch
L2 1.5 inch
O 17.75 inch
Static load 23600 N
