SKU: MS-M12 SS-MB

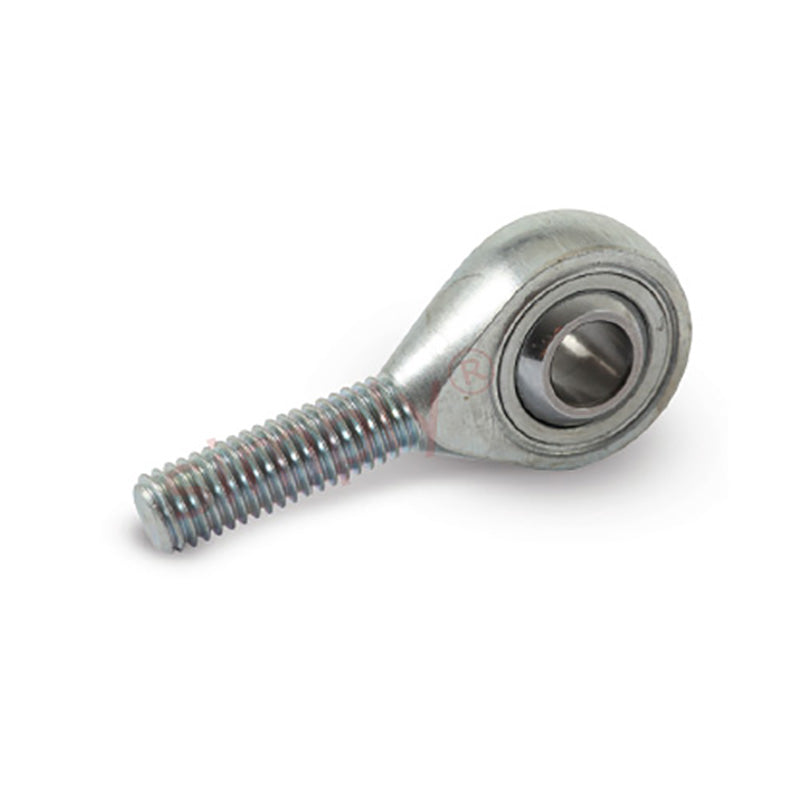

Branded MS-M12 Right Hand Metric Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End M12x1.75 Thread - Allow 7-10 Days

Name: Branded MS-M12 Right Hand Metric Stainless Steel / PTFE Lined Maintenance Free Plain Male Rod End M12x1.75 Thread - Allow 7-10 Days
Brand: Major Brand
SKU: MS-M12 SS-MB
Price: 51.00 CHF
Availability: InStock

CHF 51.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 40.35

19+ CHF 38.09

29+ CHF 37.63

39+ CHF 37.18

49+ CHF 36.73

74+ CHF 36.27

99+ CHF 34.01

199+ CHF 33.55

249+ CHF 33.10

499+ CHF 32.65

999+ CHF 31.74

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

MS SS PTFE Lined Series Maintenance Free Male Rod Ends: These stainless steel range of male rod ends incorporate a high strength PTFE bronze mesh between the ball and the liner material, suitable for high shock loads and medium to heavy mechanical load applications requiring low friction, available in both metric and imperial bore thread sizes, they do not require maintenance.
Materials: Housing and inner ring: 230M07PB steel zinc plated white and blue passivate (silver/clear) and stainless steel 303L. Liner: High strength PTFE bronze mesh composite. Ball: Bearing steel 100Cr6, heat treated, polished & electroless nickel plated and stainless steel 440C
Operating Temperature Range: Operating temperature range -200c to + 260c
Benefits: High shock loads, extended wear life, no maintenance

Brand / Quality:: Major Brand - High Quality
Thread Size:: M12x1.75
Thread M / F:: Male
Thread Direction:: Right Hand
Inside Diameter:: 12mm
Material:: PTFE Lined

Technical

Bore size	12mm
Thread	M12x1.75
W	16mm
H	12mm
D	32mm
L1	54mm
L2	33mm
O	15.4mm
Static load	23600 N
