SKU: MS3196-SKF

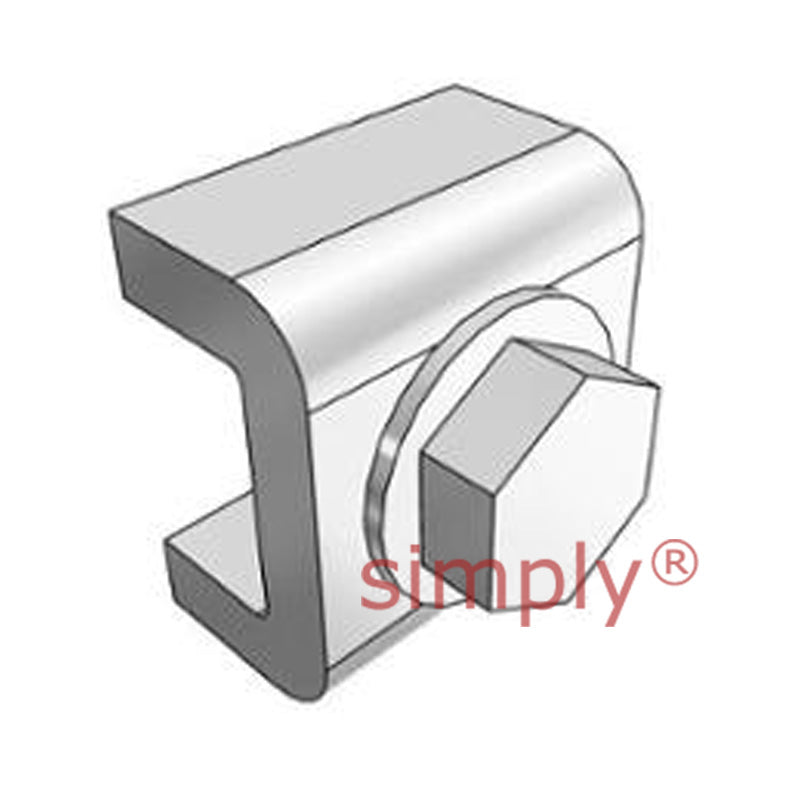

SKF MS3196 Locking Clip 36mm Wide
SKF MS3196 Locking Clip 36mm Wide
Regular price
CHF 172.56
ex VAT
Regular price
Sale price
CHF 172.56
ex VAT
In stock
Price Break
10+
CHF 153.58
19+
CHF 144.95
29+
CHF 143.22
39+
CHF 141.50
49+
CHF 139.77
74+
CHF 138.05
99+
CHF 129.42
199+
CHF 127.69
249+
CHF 125.97
499+
CHF 124.24
999+
CHF 120.79
Couldn't load pickup availability
Description
Description
|
SKF Locking Clips: Can be used with lock nuts as an alternative to a lock washer, locates in one of the cutouts around the perimeter of the nut and located in the shaft key way, is located by a set screw into the face of the nut. Benefits: Efficient, secure, inexpensive, removable and re-useable |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- 36mm
Technical
Technical
| B | 36mm |
|---|---|
| M | 15mm |
| M1 | 5mm |
| M2 | 53mm |
| M3 | 18mm |
| Weight | 0.11 kg |
| Screw | M16x30 |
| Spring washer Din128 | A16 |
