SKU: MSC60-RHP
RHP MSC60 Cast Iron Cartridge Unit with 60mm Bore Insert 149.25mm Outside Diameter
RHP MSC60 Cast Iron Cartridge Unit with 60mm Bore Insert 149.25mm Outside Diameter
Regular price
CHF 163.00
ex VAT
Regular price
Sale price
CHF 163.00
ex VAT
In stock
Price Break
10+
CHF 129.31
20+
CHF 122.05
30+
CHF 120.59
40+
CHF 119.14
50+
CHF 117.69
75+
CHF 116.24
100+
CHF 108.97
200+
CHF 107.52
250+
CHF 106.06
500+
CHF 104.61
1000+
CHF 101.71
Share this product
Description
Description
|
RHP MSC Series Heavy Duty Cast Iron Cartridge Bearing Units: Cast iron cartridge bearing unit supplied with a sealed heavy duty full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 149.25mm
- Style:
- MSC
Technical
Technical

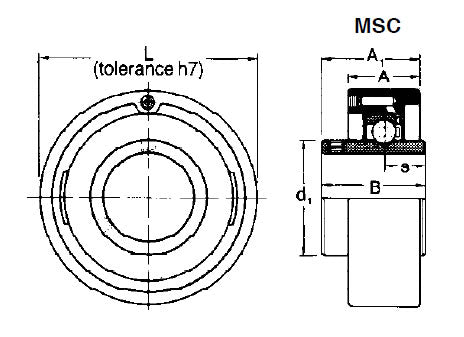

| Bore | 60mm |
|---|---|
| L | 149.25mm |
| A | 41.28mm |
| A1 | 60.3mm |
| B | 65.07mm |
| s | 25.45mm |
| d1 | 75.34 |
| Dynamic load Cr | 48000 N |
| Static load Cor | 33000 N |
| Rex max speed | 2800 rpm |
| Weight | 4.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1060-60G+insonly">1060-60G Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
