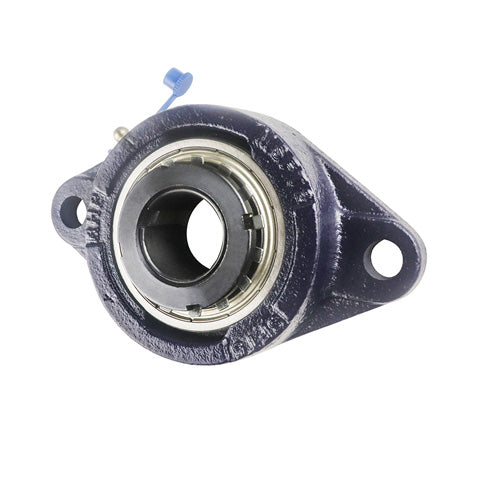

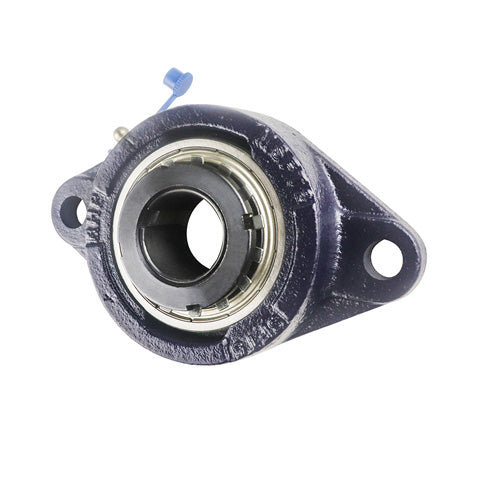

RHP MSFT1030-25K Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
RHP MSFT1030-25K Two Bolt Oval Cast Iron Flange Housing 25mm Bore Insert
Regular price
CHF 95.00
ex VAT
Regular price
Sale price
CHF 95.00
ex VAT
In stock
Price Break
10+
CHF 75.45
20+
CHF 71.21
30+
CHF 70.36
40+
CHF 69.52
50+
CHF 68.67
75+
CHF 67.82
100+
CHF 63.58
200+
CHF 62.73
250+
CHF 61.89
500+
CHF 61.04
1000+
CHF 59.34
Share this product
Description
Description
|
RHP MSFT Series Heavy Duty 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed heavy duty bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing has a taper bore to accommodate the taper sleeve which is tightened using a lock nut to secure to the shaft after installation, the locknut is subsequently secured with the tab washer. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Style:
- MSFT
- Bolt Hole Centres:
- 116.5mm
Technical
Technical
| Bore | 25mm |
|---|---|
| L | 82.6mm |
| H | 141.3mm |
| J | 116.5mm |
| G | 10mm |
| A | 29.8mm |
| A4 | 12.7mm |
| A5 | 38mm |
| B5 | 31mm |
| s | -mm |
| d4 | 45mm |
| Dynamic load | 19500 N |
| Static load | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030K+insonly">1030K Click Here</a> |
| Casting group | 1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
